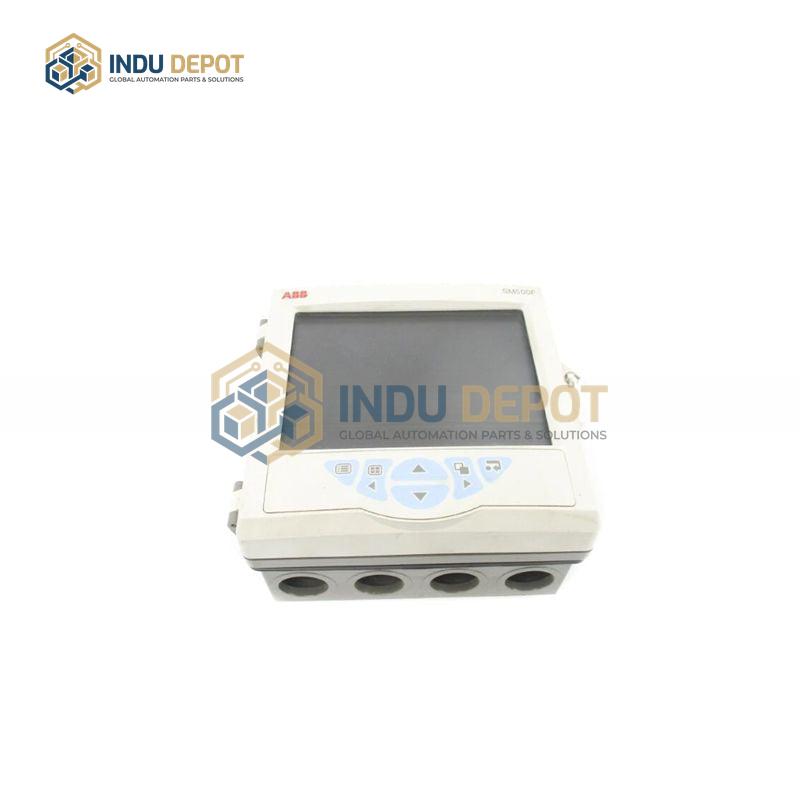

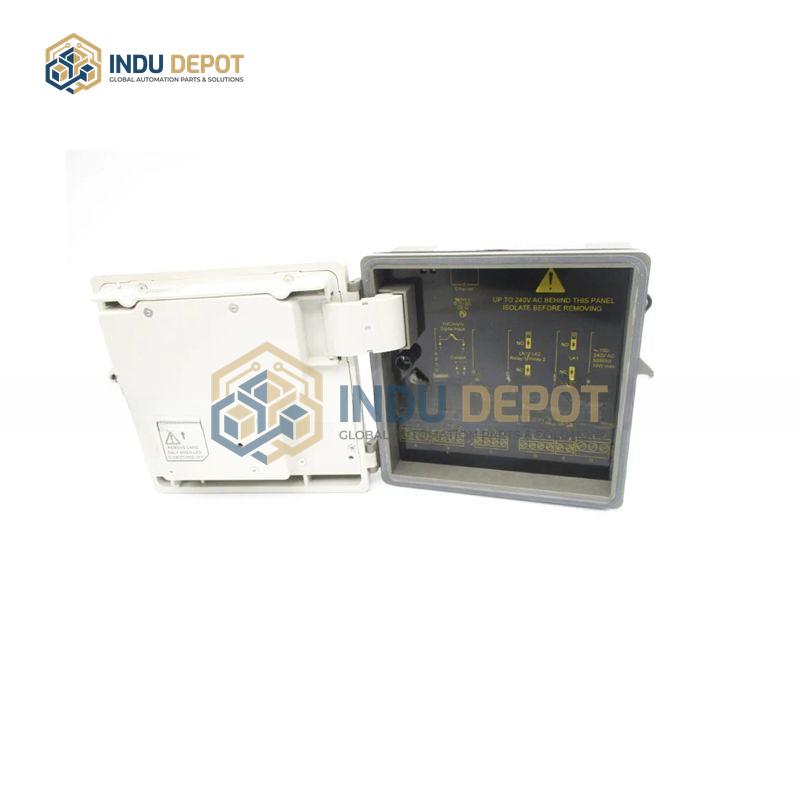

ABB SM500F Paperless Data Recorder SM501FC/B0E0021E/STD
Description
BROWNING BRCN Series Paperless Data Recorder is a multi-channel industrial data recording device designed for collecting, storing, analyzing, and tracing measured data, with 8 sub-series to meet diverse application needs.
| Specification | Value |
|---|---|
| Recording Channels | 1 to 48 channels, customizable |
| Basic Error | ±0.2% F.S |
| Data Storage | USB 2.0 interface, supports up to 32GB U disk, FAT32 format |
| Display Options | 5.6-inch to 10.4-inch TFT color LCD, 5.7-inch blue LCD, monochrome LCD |
| Transmitter Power Supply | Standard 4 groups of 24VDC, rated output current 200mA |
| Communication Interface | Optional RS485 or RS232C, Modbus-RTU protocol |
Key Features:
- High-speed 32-bit ARM microprocessor for simultaneous multi-channel detection, recording, display, and alarm
- Fully isolated input supports multiple signal types (temperature, humidity, pressure, current, voltage) with software configuration, no jumper required
- Optional functions include alarm, communication, analog output, printing, and temperature-pressure compensation
- All-aluminum sealed shell and internal shielding plate for stable operation in harsh environments
- Curve display can be switched between horizontal and vertical modes
Applications:
- Industrial production process data recording and analysis for chemical, petroleum, and electric power industries
- Environmental monitoring systems for tracking temperature, humidity, and pressure parameters
- Food and pharmaceutical production line process control and quality traceability
