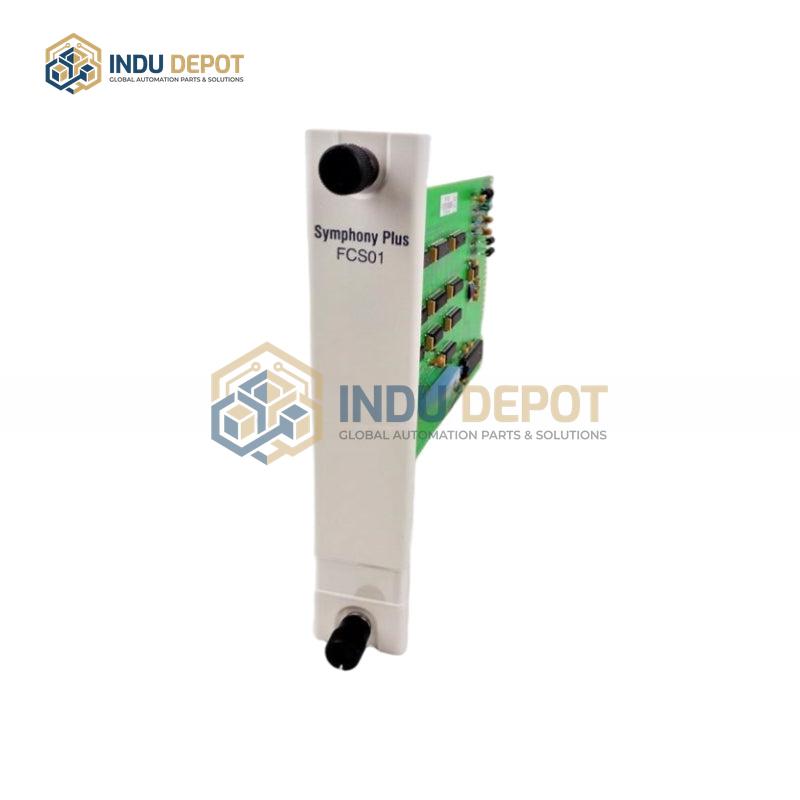

ABB SPFCS01 Frequency Counter Module

Description

The ABB SPFCS01 Frequency Counter Module is an intelligent industrial control module integrated with on-board microprocessor, memory, and communication circuits, designed specifically for turbine control system applications. It delivers highly accurate frequency counting to provide reliable turbine speed data to connected controllers, meeting the strict performance requirements of turbine control systems. The module performs multiple core tasks: it accepts analog waveform input signals, which are converted to digital signals via an on-board input signal adjustment circuit for processing by the microprocessor. The microprocessor handles data collection, timing, and communication with the host controller. Equipped with two buffered capture storage areas, the SPFCS01 maintains and prepares data for the controller; this dual-buffer design allows the controller to retrieve data without interrupting the counting process, ensuring access to only current, unblended data. Additional key features include a built-in Watchdog timer to monitor module status, and a 20ms clock signal output during microprocessor code processing, supporting stable, continuous operation in industrial environments.
