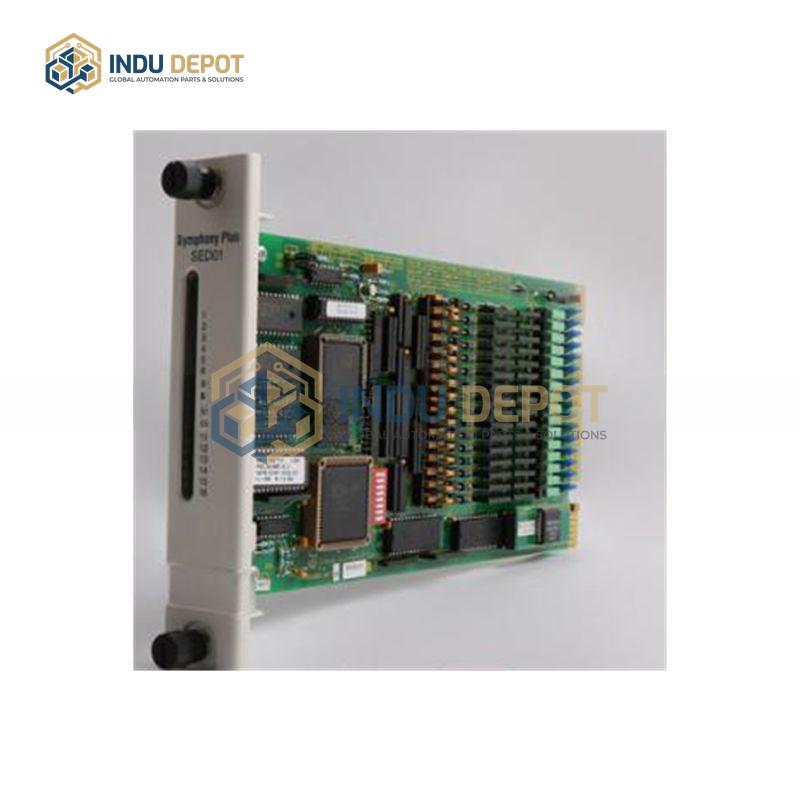

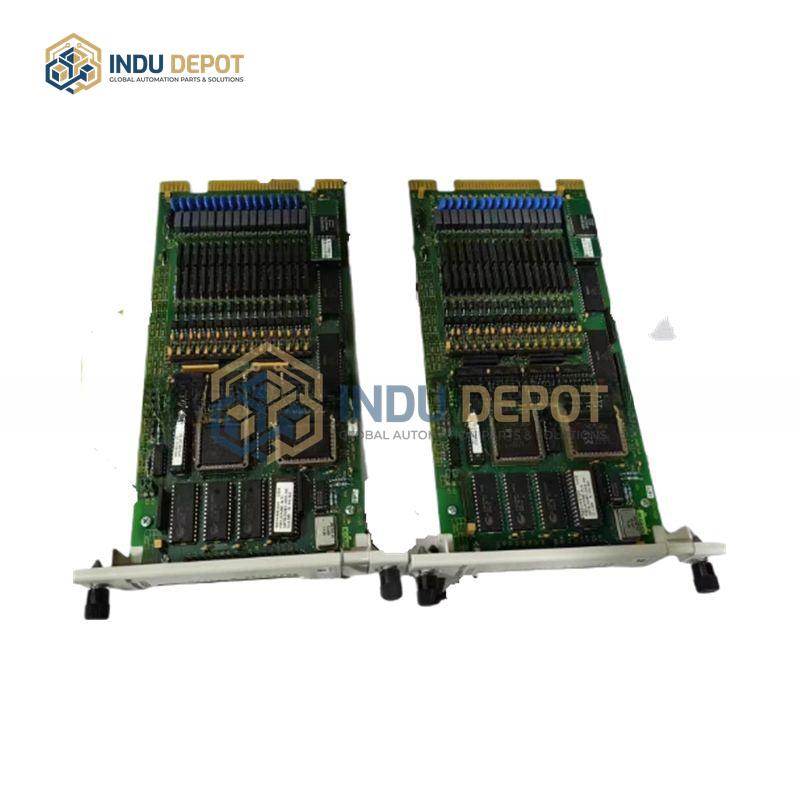

ABB SPSED01 SOE Digital Input Submodule
Description
ABB SPSED01 SOE Digital Input Submodule is a 16-channel sequence of events (SOE) digital input submodule designed for the ABB Bailey Symphony Plus distributed control system (DCS), serving as a core component for high-precision digital signal acquisition and safety control in industrial automation.
| Specification | Value |
|---|---|
| Input Channels | 16 channels |
| Supported Input Voltages | 24V DC, 48V DC, 125V DC, 120V AC |
| Power Supply | 24V DC ±10%, power consumption ≤10W |
| Operating Temperature | -40 to 70 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Processor | 32-bit ARM Cortex-M7, 200MHz, 512KB Flash + 128KB RAM |
| Failure Response Time | Less than 2 milliseconds |
| Protection Rating | IP30/IP65 |
Key Features:
- Optically isolated channels for strong anti-interference signal transmission
- Complies with IEC 61508 SIL3/PL e safety standards, supports PROFISAFE, CIP Safety, FSoE safety protocols and EtherCAT, PROFINET, EtherNet/IP communication
- Redundant dual-channel design with hardware interlock to prevent single-point failure
- Built-in LED status indicators, fault alarms, event logging, and AI-driven predictive maintenance and carbon footprint tracking functions
- PCI/PCI-E interface for modular expansion and third-party device compatibility
Applications:
- Mechanical manufacturing: Safety control for CNC machines, robot workstations, and safety door/emergency stop monitoring
- Energy and power: Safety systems for wind, photovoltaic, and thermal power plants
- Process automation: Safety instrumented systems (SIS) for chemical and petroleum production facilities
- Rail transit: Safety control for subway door and platform door systems
