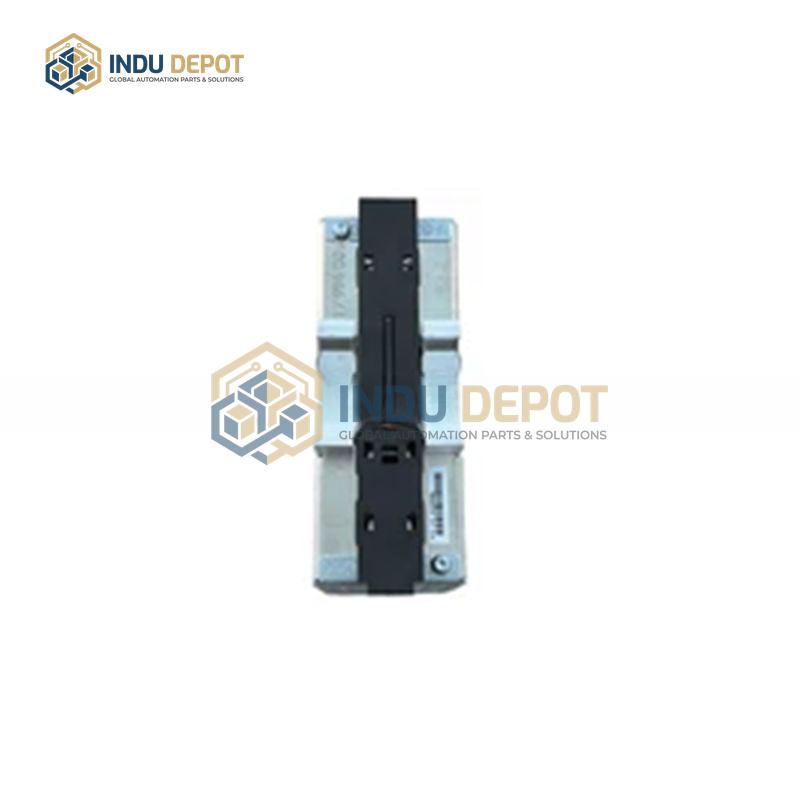

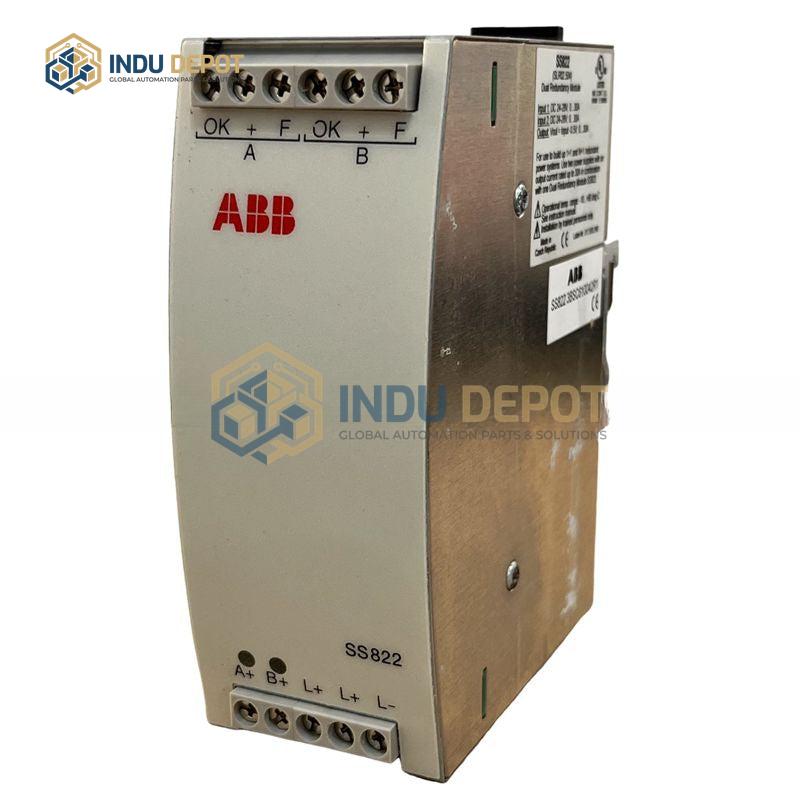

ABB SS822 Power Supply Module

Description

The ABB SS822 Power Supply Module is a high-efficiency switching power supply unit, designed with a distinct operational mode that sets it apart from linear power supplies. Unlike linear units that run power transistors in linear mode, this module operates its power transistors in on and off states, minimizing volt-ampere product on the transistors and reducing power semiconductor device losses significantly. Variants of the module include the KUA-SS822 model, which features a 220V operating voltage, 50Hz output frequency, and 3C product certification. Related compatible modules like the SB822 integrate expanded functionality, serving as a combined power supply and digital I/O module with 16 channels of 24V DC digital input (1ms filter time, 2500Vrms isolation) or relay/transistor output, ideal for industrial field signal collection and control. It also supports dual gigabit Ethernet with MRP/RSTP redundancy, RS485, and USB 2.0 interfaces, and is compatible with protocols including Profibus-DP, Modbus TCP, and OPC UA, with expandability for encoders and I/O extension cards. The module is engineered for use in industrial automation systems such as DCS, PLC, CNC machines, robotic systems, conveyor lines, and process control applications, with a rugged design suitable for harsh industrial environments.
