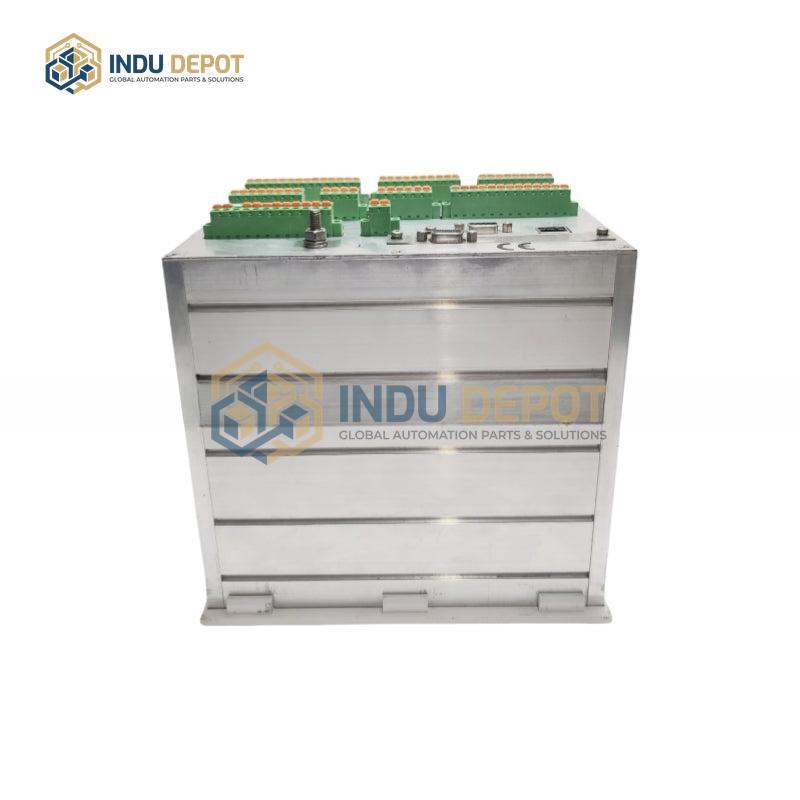

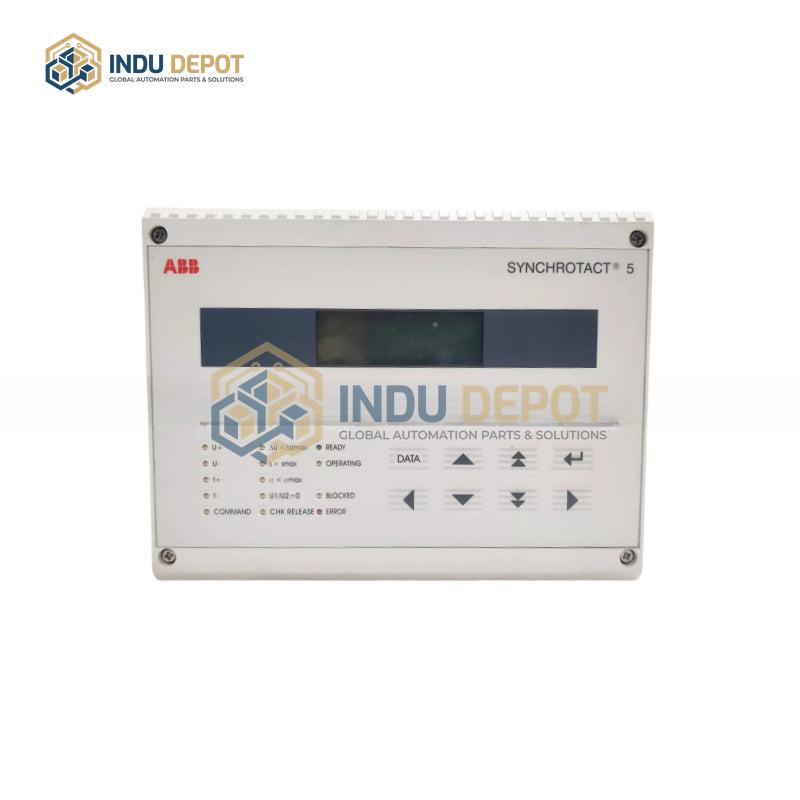

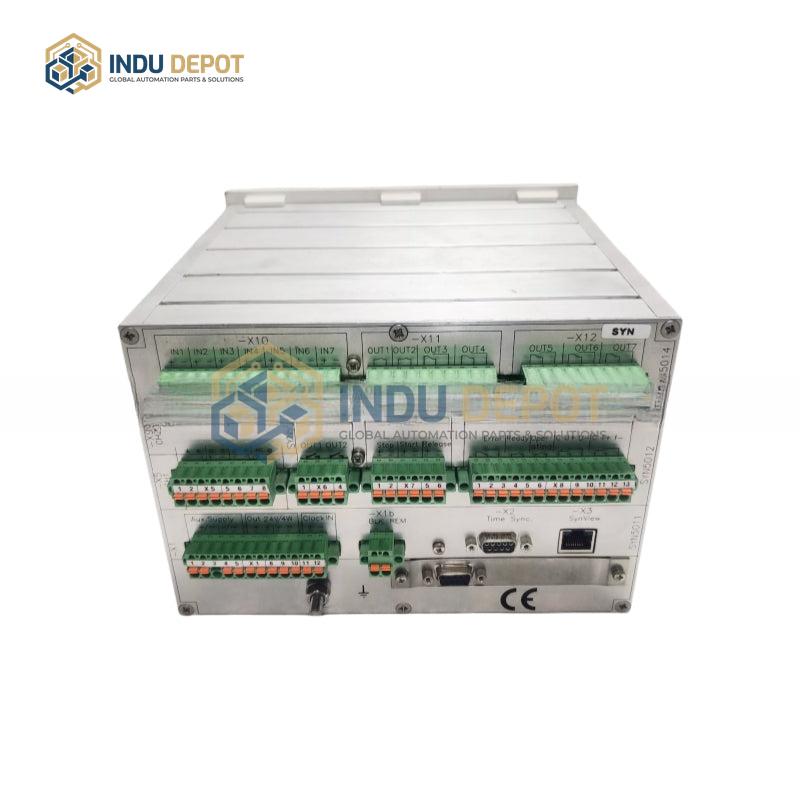

ABB SYN 5201A-Z,V217 Synchronous Device
Description
ABB SYN 5201A-Z,V217 3BHB006714R0217 Synchronous Device is a single-channel digital automatic synchronizer and control unit from the ABB SYNCHROTACT 5 series, designed to safely and precisely synchronize generators with electrical grids or other power sources.
| Specification | Value |
|---|---|
| Product Type | Single-channel Automatic Synchronization Device |
| Input Voltage Range (Rated) | 50 to 130 VAC |
| Input Frequency | 16.67/50/60 Hz |
| Auxiliary Power Supply | 24 to 250 VDC, 100 to 230 VAC |
| Measurement Voltage Range | 0 to 1.3 V |
| Angle Matching Range | -179 to 180 degrees |
| Operating Temperature | +5 to +70 degrees Celsius |
| Installation Type | Rack Mount |
Key Features:
- Highly automated and precise grid connection operation, automatically adjusting generator parameters to avoid equipment shock and extend service life
- Built-in self-diagnostic functions prevent asynchronous closing, with support for up to 7 configurable parameter sets for flexible adaptation
- Digital design ensures high accuracy and stability, compatible with ABB SinView 5 software for parameter setup, debugging, and data analysis
- Seamless integration with various protection devices and DCS systems, suitable for harsh industrial environments
Applications:
- Power plants including thermal, hydro, nuclear, and combined cycle gas turbine facilities
- Industrial self-owned power plants, such as steel, chemical, and paper manufacturing facilities
- Standby power systems, offshore platforms, and shipboard power grids requiring multi-generator parallel operation
Related Models:
- ABB SYN5202a-Z,V217 (3BHB006715R0217) – Dual-channel automatic synchronization device
- ABB SYN5302a-Z,V217 (3BHB006716R0217) – Redundant dual-channel automatic synchronization device
- ABB SYN5100 – Simple synchronization checker for SYNCHROTACT 5 series
