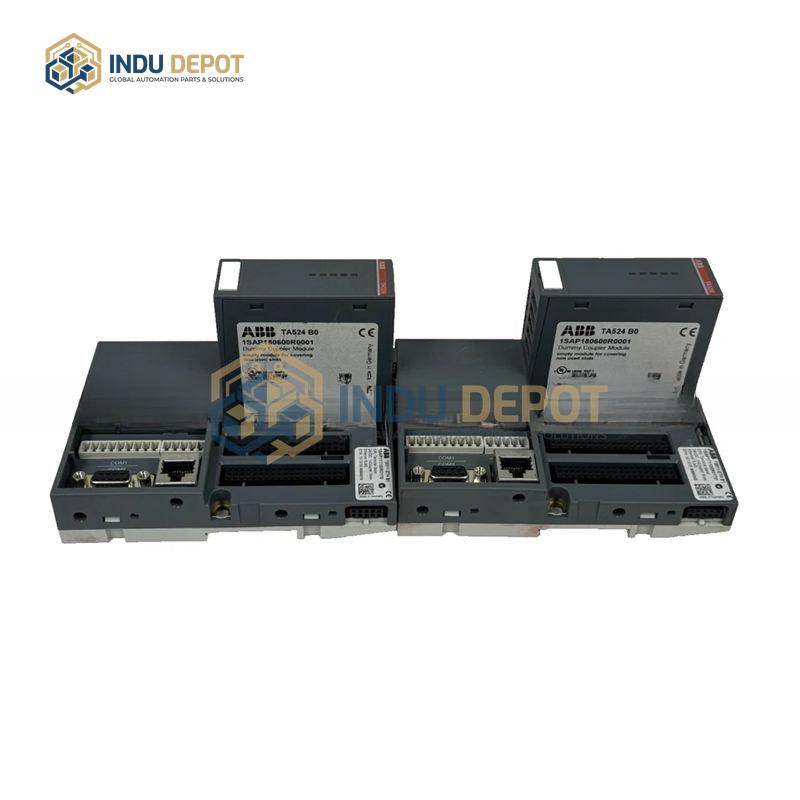

ABB TB511-ETH B1 PLC CPU Terminal Base
Description
ABB TB511-ETH B1 PLC CPU Terminal Base is a communication backplane for the ABB AC500 series PLC system, designed to provide connection and communication support for compatible CPU units.
| Specification | Value |
|---|---|
| Working Voltage | 220V |
| Output Frequency | 50Hz |
| Product Certification | 3C |
| Compatibility | Not compatible with V2.0 and above CPUs with Ethernet function |
Key Features:
- Integrated Ethernet RJ45 interface and FBP slave interface for multi-protocol communication
- 1 communication expansion slot for adding additional communication modules
- COM1 port with spring terminal blocks, COM2 port with SUBD9 interface, and 24VDC power supply with spring terminal blocks for secure connections
Applications:
- Industrial automation control systems requiring multi-device communication
- Factory production line control and monitoring setups
- Process control systems needing reliable PLC backplane connectivity
Related Models:
- PM581-ETH CPU Unit
- PM582 CPU Unit
- PM590-ETH CPU Unit
- PM591-ETH CPU Unit
