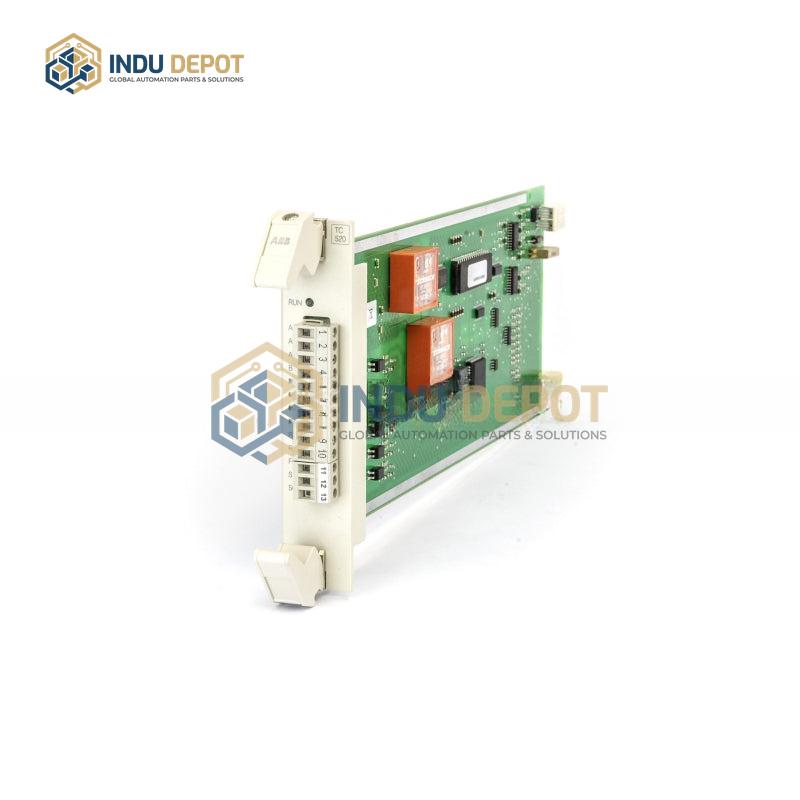

ABB TC520 System Status Collector

Description

The ABB TC520 System Status Collector (order number 3BSE001449R1) is an industrial automation device belonging to the ABB Advant controller series, designed for real-time monitoring, data collection, and status tracking of industrial systems. It seamlessly integrates with ABB Advant AC450 and AC460 controllers, and supports up to 32 measurement channels to capture key parameters including voltage, current, and temperature. With a 0.5% full-scale measurement accuracy and maximum 1000 Hz sampling rate, it delivers precise, high-speed data acquisition for critical system oversight.

Equipped with a 24V DC operating voltage, this collector features modular design for easy expansion, maintenance, and DIN rail mounting. It supports multiple communication protocols including Modbus and Profibus, enabling reliable data storage, transmission, and integration with other control systems. Operating within a temperature range of -20 degrees Celsius to 60 degrees Celsius with an IP20 protection rating, it offers high reliability and flexibility for industrial environments. Additional core features include real-time system status monitoring, potential fault detection, historical data recording for performance optimization, and built-in fault diagnostic capabilities to minimize equipment downtime and enhance overall system reliability. The unit weighs approximately 0.29 kg and has dimensions of 13.0 inches x 2.0 inches x 6.0 inches.
