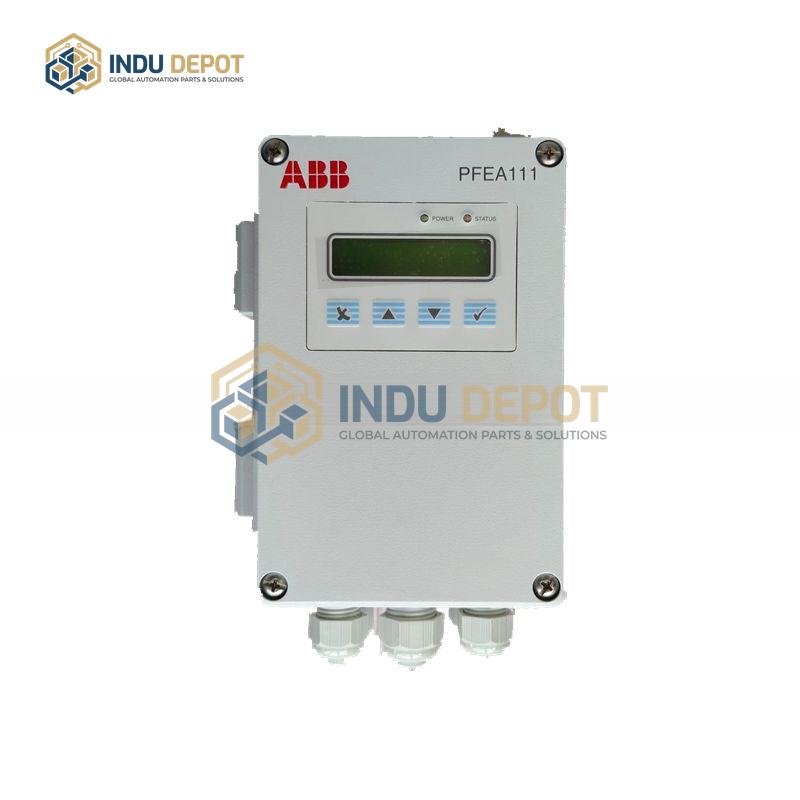

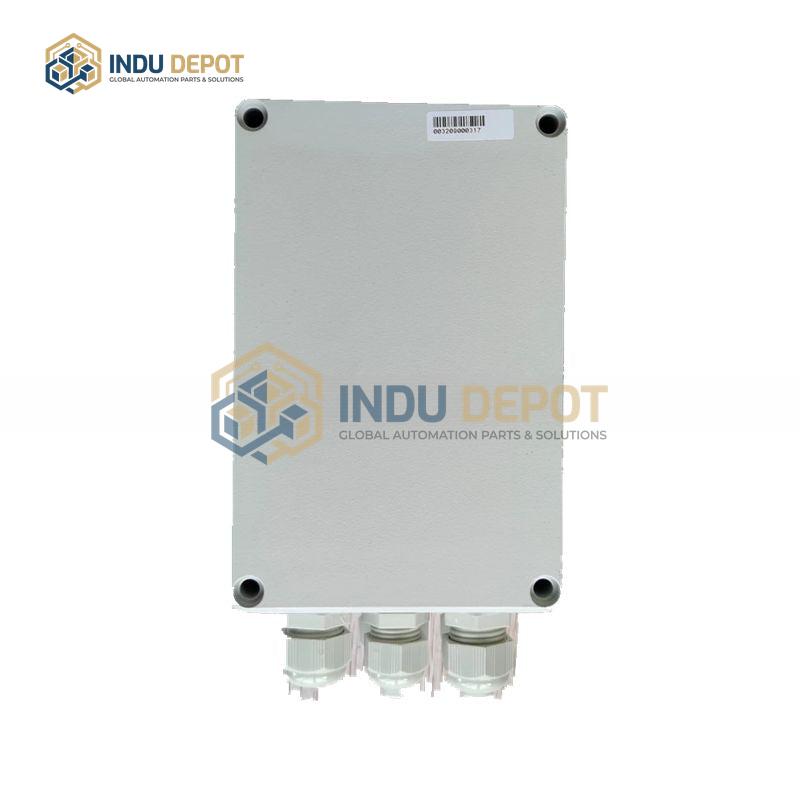

ABB Tension Controller PFEA111-65 High-Performance Industrial Electronics
Description
ABB Tension Controller PFEA111-65 is a high-performance industrial tension control module integrated with measurement, display, and control functions, designed for both dynamic and static tension scenarios. It uses a combined strain gauge and micro-displacement measurement principle, supporting a 0 to 65N tension range that can be extended for larger loads, and is compatible with various materials from yarn to metal strips.
| Specification | Value |
|---|---|
| Supply Voltage | 24V DC ±10% |
| Power Consumption | 8W |
| Tension Range | 0 to 65N, extendable |
| Control Accuracy | ±0.1% F.S. |
| Response Time | ≤200ms |
| Protection Rating | IP20 or IP65/NEMA 4 |
| Operating Temperature (Wide Temp Version) | -40 to 70 degrees Celsius |
| Communication Protocols | Modbus, Profibus DP (via PFEA112 option) |
Key Features:
- Adaptive PID closed-loop control that optimizes parameters within 0.5 seconds during material switching
- Dual load cell inputs with support for A+B, A-B, and single sensor display modes
- Adjustable filtering to suppress mechanical vibration interference
- Modular design supports cascading up to 12 modules for multi-channel control systems
- Built-in overcurrent/overheat protection, power isolation, and self-diagnosis system with MTBF over 50,000 hours
- 2×16 character multi-language display with panel keys for advanced output modes like ramp and triangle waves
Applications:
- Printing and packaging lines to maintain consistent web tension and prevent material breakage
- Textile manufacturing for stable yarn tension control during winding and weaving
- Metal processing for precise tension management in strip rolling and wire drawing
- Lithium battery and photovoltaic production for accurate coating and cutting tension control
