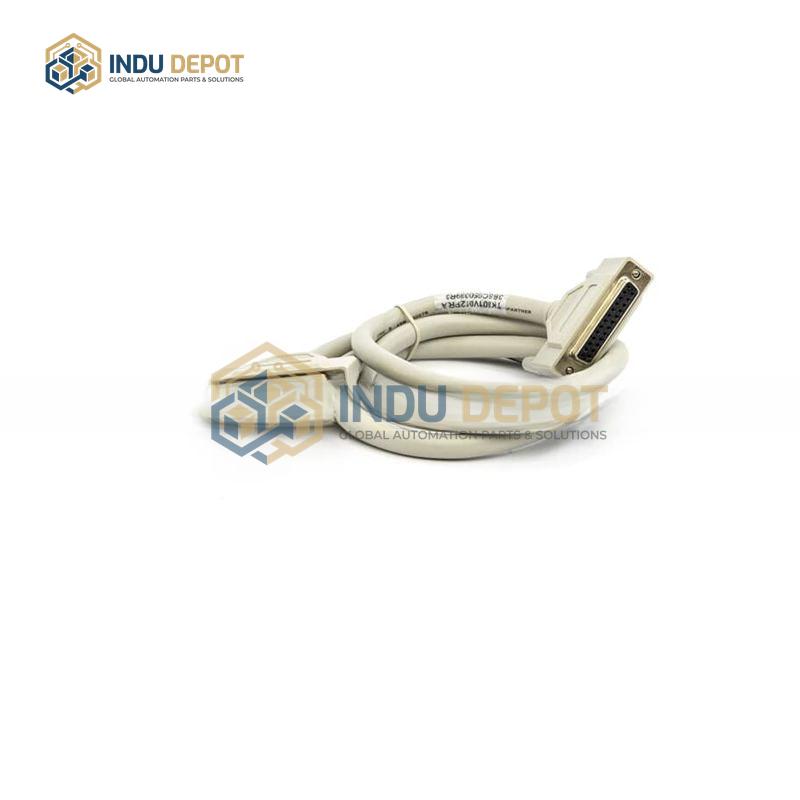

ABB TK801V012 Module Bus Extension Shielded Cable
Description
ABB TK801V012 Module Bus Extension Shielded Cable is a shielded twisted-pair signal cable designed for ABB ControlLogix series PLC systems, serving as a reliable connection between processors and I/O modules to ensure stable high-speed signal transmission.
| Specification | Value |
|---|---|
| Model Number | TK801V012 |
| Material Number | 3BSC950089R3 |
| Cable Type | Shielded Twisted Pair (STP) |
| Conductor Spec | 24AWG tinned copper, 0.51mm diameter |
| Operating Temperature Range | -40 to 80 degrees Celsius |
| Transmission Impedance | 100Ω±15% (@1MHz) |
| Signal Transmission Rate | Up to 100Mbps |
| Connector Type | ABB TS02-10P gold-plated terminals, plug life ≥1000 cycles |
Key Features:
- Dual shielding (aluminum foil + braided mesh with ≥90% coverage) blocks EMI and RFI to reduce signal crosstalk
- Flame-retardant FR-PVC outer sheath meets UL 94 V-0 standard, with oil and wear resistance
- Supports custom lengths from 1 to 50 meters, with standard lengths of 2m, 5m, 10m
- 300V AC/DC rated voltage and 1A rated current meet industrial low-voltage signal transmission standards
Applications:
- Signal connection between ControlLogix processors and I/O modules in intelligent manufacturing production lines
- Data transmission for power control systems in substations and power distribution facilities
- Linkage between control systems and field devices in metallurgical and chemical processing plants
Related Models:
- TK801V003
- TK801V006
- TK212A
