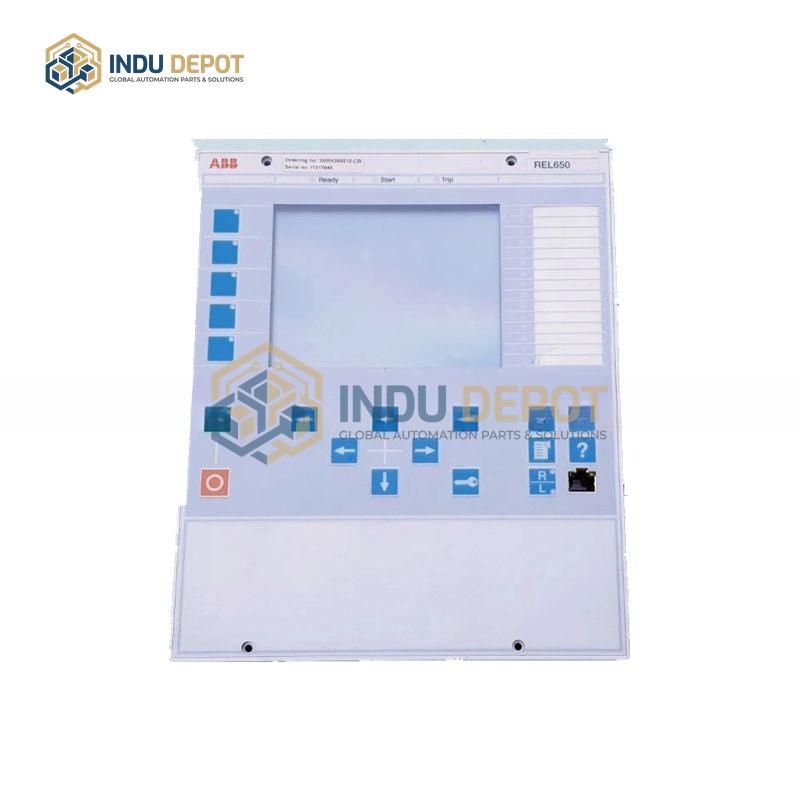

ABB Transformer Protection Unit 1KHL160006R0001 Substation
Description
ABB Transformer Protection Unit 1KHL160006R0001 Substation is a specialized substation-grade device designed to monitor and protect transformers from electrical faults and abnormal operating conditions, ensuring reliable power distribution and equipment longevity.
| Specification | Value |
|---|---|
| Product Type | Substation Transformer Protection Unit |
| Target Transformer Capacity Range | 6300 kVA to 180000 kVA |
| Compatible Voltage Class | 110 kV |
| Operating Temperature Range | -20 degrees Celsius to 40 degrees Celsius |
| Protection Standards Compliance | GB1094.1-1996, GB1094.2-1996, GB1094.3 |
Key Features:
- Monitors critical parameters including temperature, voltage, load, and short circuit conditions
- Integrates multiple protection functions such as overcurrent, overvoltage, undervoltage, and overheating protection
- Supports remote monitoring and data analysis for predictive maintenance
- High resistance to electrical interference and harsh substation environments
Applications:
- High-voltage substations for power grid transmission and distribution
- Industrial power systems supporting large manufacturing facilities, refineries, and mining operations
- Power generation plants including thermal, hydro, and solar facilities
Related Models:
- SF11-6300/110
- SF11-10000/110
- SF11-16000/110
- SFS11-6300/110
