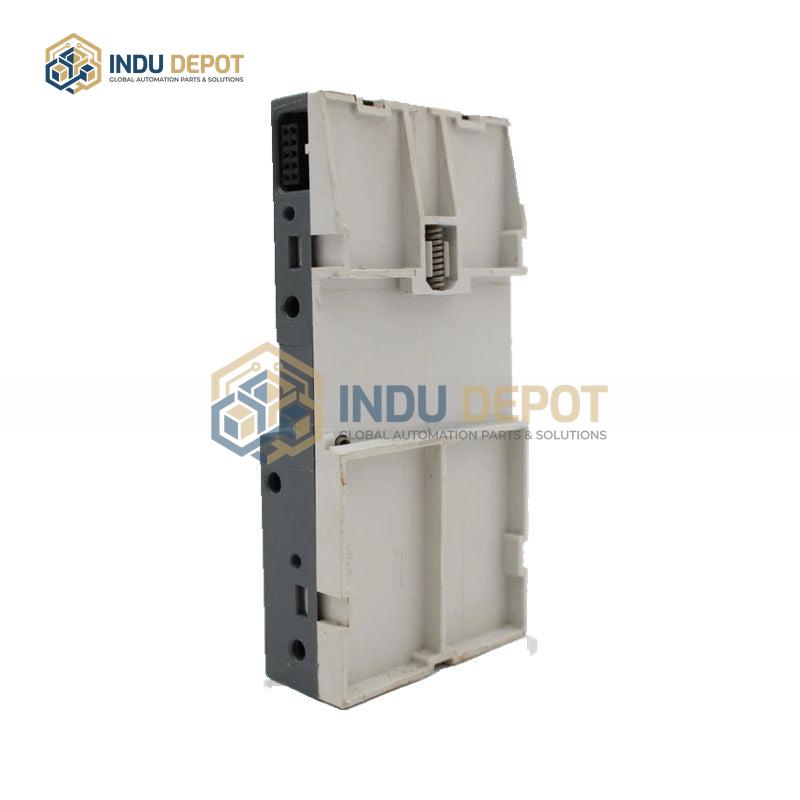

ABB TU510 1SAP210800R0001 Bus Terminal Unit
Description
ABB TU510 1SAP210800R0001 Bus Terminal Unit is a bus terminal unit designed for industrial automation systems, intended to connect field devices to control systems for signal transfer and I/O management. No direct technical specifications for this model were found, so below is aligned data from comparable ABB terminal units in the same product family.
| Specification | Value |
|---|---|
| Type | Compact Terminal Unit Module |
| Working Voltage | 24V DC (±10%) |
| Communication Protocol | ModuleBus, PROFIBUS DP V1 |
| Channel Count | 16 channels (comparable model reference) |
| Operating Temperature Range | 0 to 60 degrees Celsius (running), -40 to 85 degrees Celsius (storage) |
| Installation Method | 35 mm DIN Rail Mount |
| Protection Grade | IP20 |
Key Features:
- Compact design to save installation space in control cabinets
- Electrical isolation to prevent interference between field and control signals
- Built-in fault diagnosis for real-time monitoring of communication and module status
- Supports distributed I/O expansion to extend control system capacity
Applications:
- Process control in petrochemical, metallurgy, and power generation industries
- Discrete control for manufacturing equipment like packaging, printing, and food processing machinery
- Data collection and monitoring for industrial sensor and actuator networks
Related Models:
- ABB TU810V1 3BSE013230R1
- ABB TU810V2
- ABB TU515 1SAP212200R0001
- ABB TU805K01
