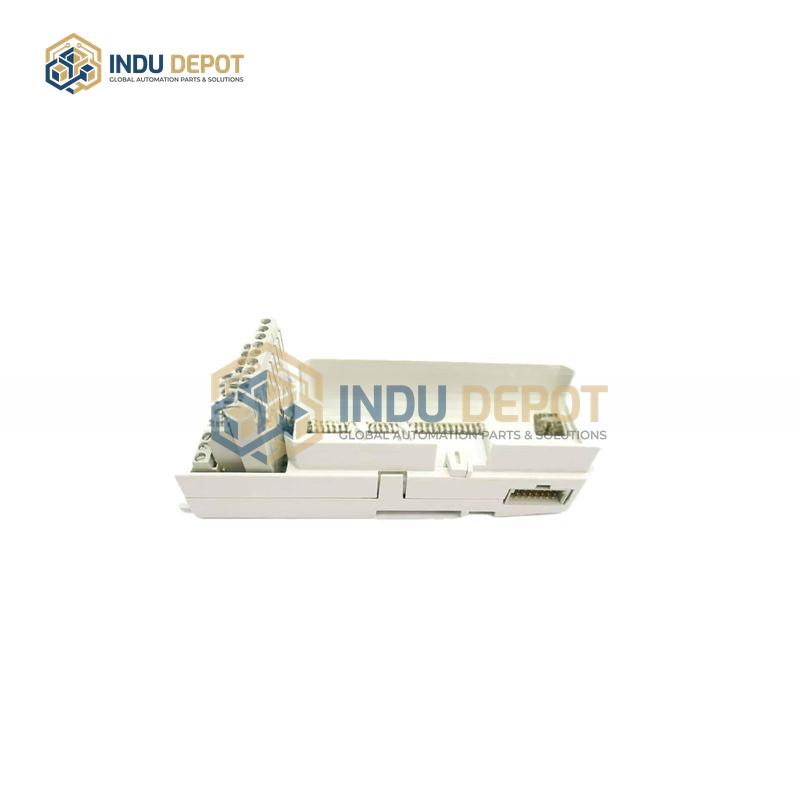

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit
Description
ABB TU810V1 3BSE013230R1 Compact Module Termination Unit is a compact module termination unit (MTU) designed for the ABB S800 I/O system, serving as a connection bridge between I/O modules and field devices to enable reliable signal transmission and system integration.
| Specification | Value |
|---|---|
| Number of Channels | 16 channels (2×8 signal terminals) |
| Operating Voltage | 24V DC (18-32V DC wide range), 50V DC optional |
| Isolation Voltage | 50V DC |
| Input/Output Current | Input 21mA, Output 0-20mA |
| Maximum Load Current | 2A |
| Dimensions | 64mm (depth) × 170mm (height) × 58.5mm (width) |
| Weight | 0.2kg |
| Operating Temperature | -25 to 70 degrees Celsius |
| Protection Rating | IP20 |
Key Features:
- Compact design suitable for installation in limited space
- High reliability for stable operation in harsh industrial environments
- Modular design for easy integration with ABB automation systems
- Multi-channel connection supports various sensors and actuators
- Hot-swap capability allows online module replacement without system shutdown
- Electrical isolation reduces interference and ensures signal integrity
Applications:
- Manufacturing industry including automotive, electronics, and food processing
- Energy industry including power, oil, and chemical sectors
- Process control systems in chemical and pharmaceutical production
- System expansion and data collection for PLC and DCS platforms
Related Models:
- ABB TU811V1
- ABB TU830V1
- ABB TU840V1
- ABB INICT12
