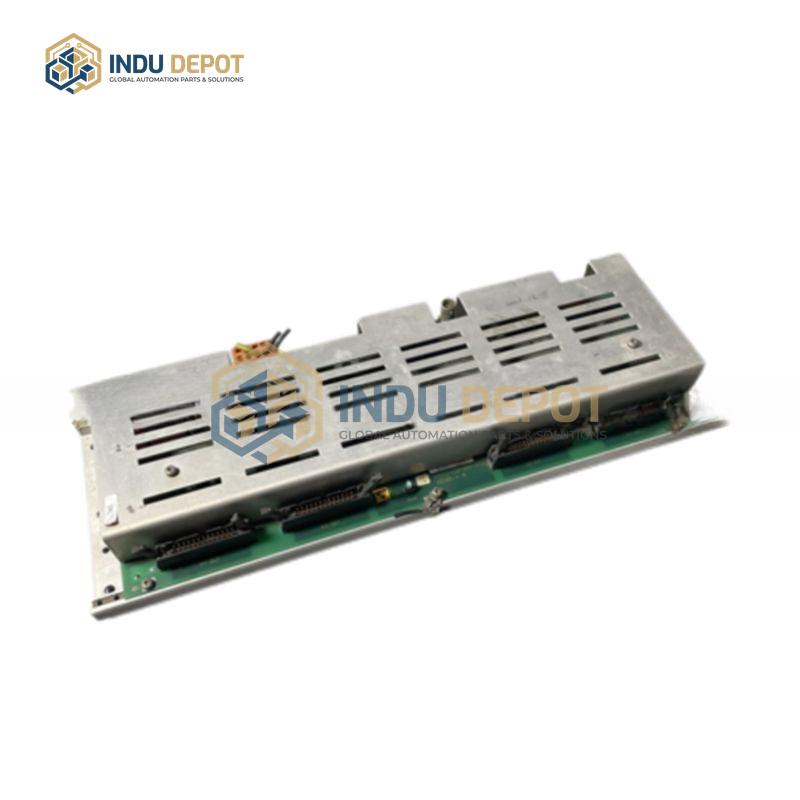

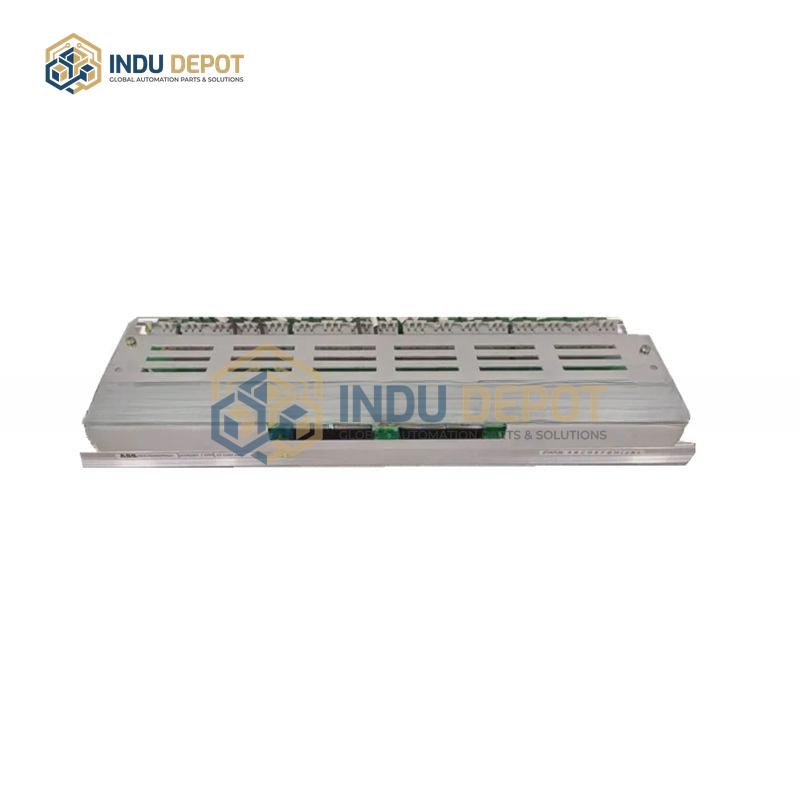

ABB UP C090 AE01 Incentive Board HIEE300661R0001
Description
ABB UP C090 AE01 Incentive Board HIEE300661R0001 is an industrial automatic analog control module, serving as a critical bridge between field sensors, actuators, and control systems for precise industrial process control.
| Specification | Value |
|---|---|
| Signal Input | 4-20mA current, 0-10V voltage, K/J/T type thermocouples, PT100 RTDs; 8 differential isolated channels |
| Signal Output | 4 configurable independent channels, 4-20mA current or 0-10V voltage |
| Measurement Accuracy | Current/voltage: ±0.05% FS; Thermocouple/RTD: ±0.1% FS |
| Sampling Rate | 100Hz per channel, 8-channel parallel sampling with no delay |
| Operating Environment | Temperature: -25 to 70 degrees Celsius; Humidity: 5% to 95% non-condensing; EMC compliance: EN 61000-6-2/3 |
| Power Supply | 24VDC ±15%, power consumption ≤12W, supports redundant power supply |
| Communication Interfaces | PROFIBUS-DP, Modbus TCP, EtherNet/IP |
| Weight | 0.2kg |
Key Features:
- High-precision analog signal acquisition and output for reliable process control
- Electrical isolation between input channels to prevent cross-interference
- Multi-protocol communication support for seamless integration with various PLC/DCS systems
- Resin surface protection and robust EMC performance for harsh industrial environments
- Fast startup (FSU) function for quick system initialization
Applications:
- Power plants, steel mills, and cement factories
- Automotive manufacturing, mining, and aluminum processing
- High-voltage inverter system multi-board control connections
- Petrochemical, water treatment, and general industrial process control
