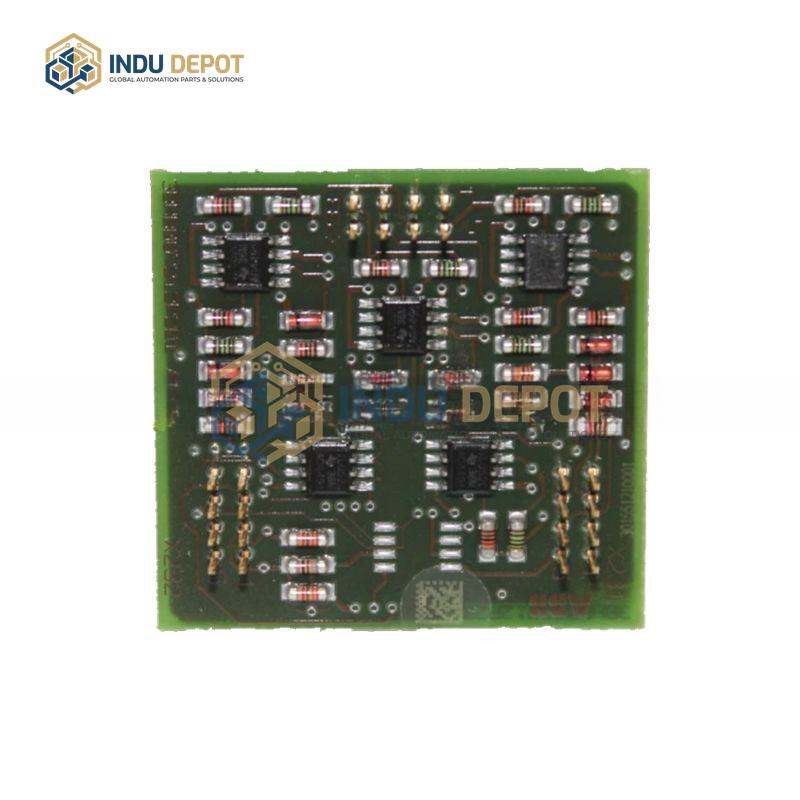

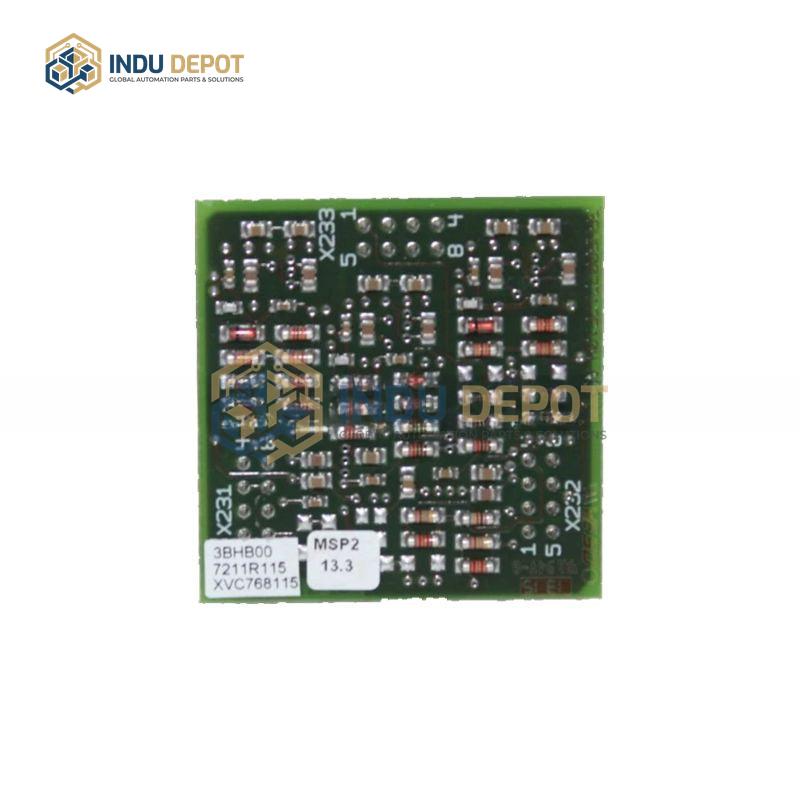

ABB XVC768115 3BHB007211R115 Current Monitoring Board
Description
ABB XVC768115 3BHB007211R115 Current Monitoring Board is a 16-channel input/output module designed for industrial automation systems, specifically compatible with ABB ACS880 frequency converters. It enables connection to multiple sensors and control of various field devices to support industrial process monitoring and control.
| Specification | Value |
|---|---|
| Digital Input Channels | 16 |
| Digital Output Channels | 16 |
| Operating Voltage Range | 24 VDC |
| Supported I/O Types | Digital input, digital output, pulse input |
| Operating Temperature Range | -25 to 60 degrees Celsius |
| Protection Rating | IP20 |
| Dimensions | 100 x 100 x 60 millimeters |
| Weight | 0.5 kilograms |
Key Features:
- Output channels include short circuit and overload protection to prevent equipment damage from circuit faults
- Supports connection to multiple sensors and field devices for flexible system integration
- Easy to install and operate, with high reliability and durability for long-term industrial use
Applications:
- Industrial process monitoring and control systems
- ABB ACS880 frequency converter I/O expansion
- Control of motors, valves, lights and other field devices
- Connection for position sensors, speed sensors and switches
Related Models:
- ABB XVC768101 3BHB007211R101
- ABB XVC768102 3BHB007211R102
- ABB XVC767AE102 3BHB007209R0102
- ABB XVC767AE105 3BHB007209R0105
