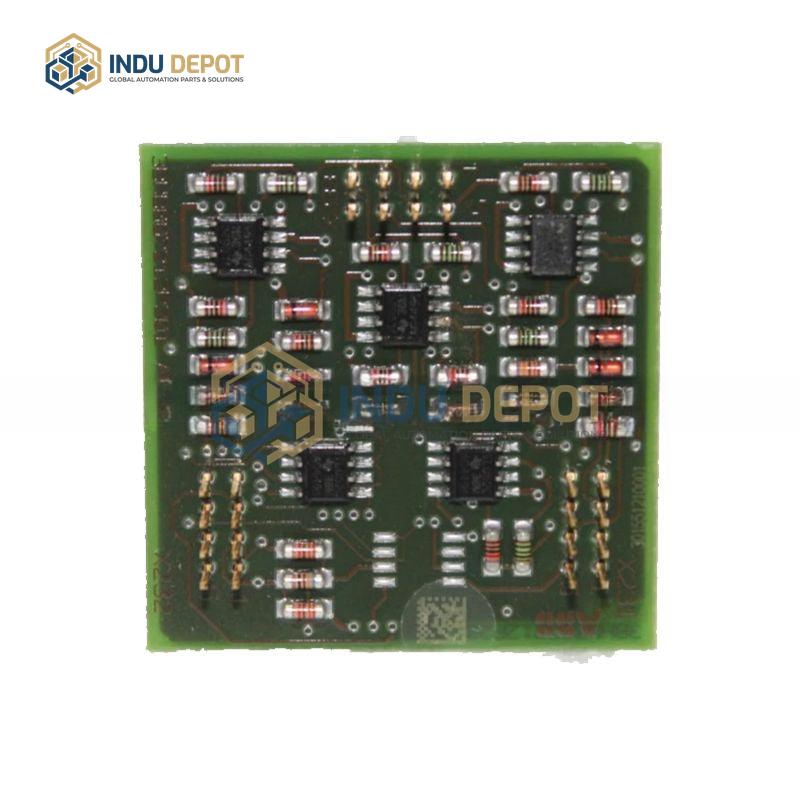

ABB XVC768115 3BHB7211R115 Pulse Output Module
Description
ABB XVC768115 3BHB7211R115 Pulse Output Module is a 16-channel digital input/output module designed for industrial automation systems, and is also compatible with ABB ACS880 variable frequency drives. It enables data collection from sensors and control of industrial equipment to support complex automation workflows.
| Specification | Value |
|---|---|
| Digital Input Channels | 16 |
| Digital Output Channels | 16 |
| Operating Voltage | 24 VDC |
| Operating Temperature Range | -25 to 60 degrees Celsius |
| Protection Rating | IP20 |
| Dimensions | 100 x 100 x 60 millimeters |
| Weight | 0.5 kilograms |
Key Features:
- Supports multiple input/output types including digital input, digital output, and pulse input
- Output channels include short circuit and overload protection to prevent equipment damage
- Easy to install and operate, with durable construction for long-term use in industrial environments
- Multi-channel design handles multiple signals simultaneously for complex control needs
Applications:
- Data collection and equipment control in general industrial automation systems
- Input/output expansion for ABB ACS880 variable frequency drives
- Connection to position sensors, speed sensors, and switches for signal monitoring
- Control of motors, valves, lights, and other industrial devices
Related Models:
- ABB XVC768AE101 3BHB007211R0101
- ABB XVC768AE117 3BHB007211R0117
- ABB XVC770BE101 3BE021083R101
