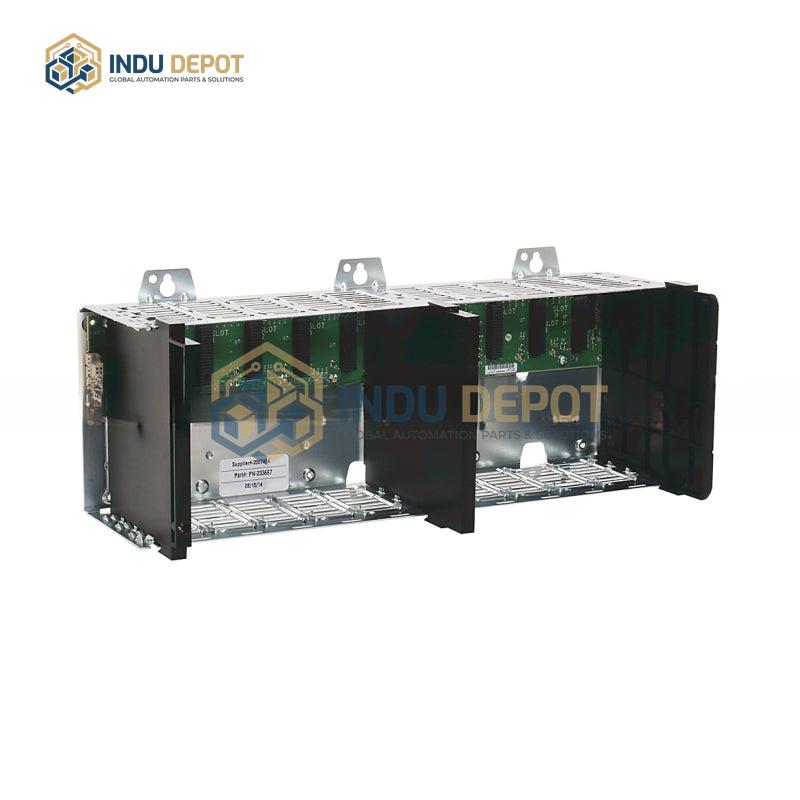

Allen-Bradley 1756-A10 10 Slot ControlLogix Chassis

Description

The Allen-Bradley 1756-A10 10 Slot ControlLogix Chassis is a modular, rack-mountable hardware component designed for the ControlLogix automation system. Its core function is to provide secure electronic connectivity between ControlLogix modules, enabling seamless communication and power distribution across the system. It supports panel mounting for flexible integration into industrial control setups. Key technical specifications include a backplane with rated currents of 1.5A @ 1.2VDC, 4A/4A @ 3.3VDC, and 15A/6A @ 24VDC. Installation requires specific clearance: 6.0 inches (15.3 cm) of top and bottom space, 4.0 inches (10.2 cm) of side space plus the width of the power supply, and 3.0 inches (7.7 cm) of gap plus power supply width when mounted side-by-side with another ControlLogix chassis. A dedicated, non-slot-occupying power supply slot is located at the far left, compatible with standard, thin, or redundant ControlLogix power supplies. As part of the ControlLogix series, it supports scalable, multi-domain industrial control applications, including standard and safety control operations within the same rack.
