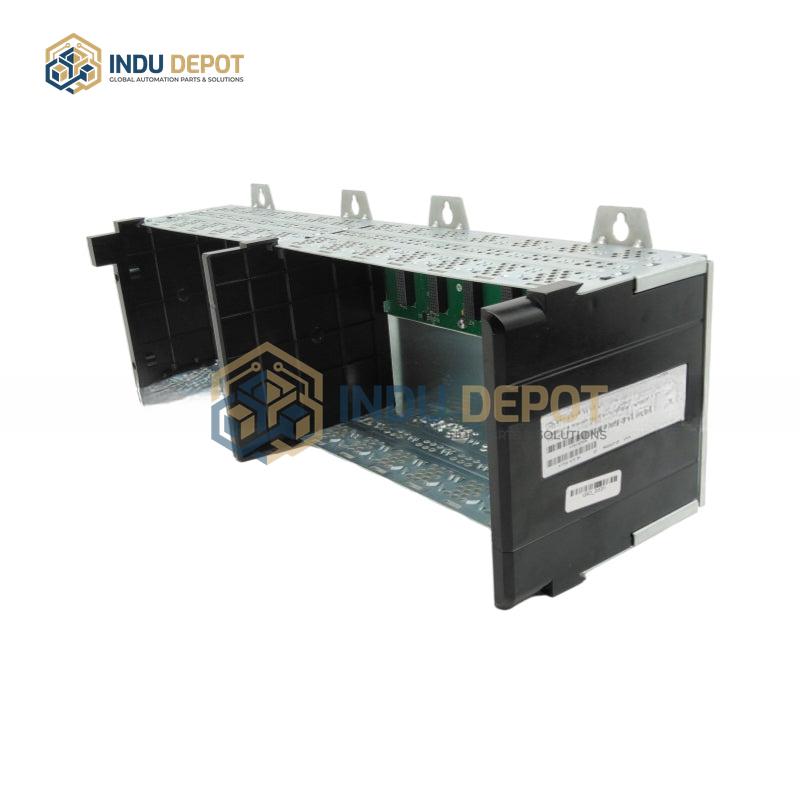

Allen-Bradley 1756-A13 ControlLogix Chassis 13 Slot

Description

The Allen-Bradley 1756-A13 ControlLogix Chassis 13 Slot is a standard chassis from the ControlLogix product line, designed for industrial automation control systems. It features 13 slots, capable of accommodating up to 12 ControlLogix series modules including controllers, input/output modules, and communication modules such as the 1756-EWEB. The chassis houses a backplane that distributes power to each installed module to support normal circuit operation.

Constructed with powder-coated steel, it offers excellent wear resistance and corrosion resistance, making it suitable for harsh industrial environments. It supports horizontal installation, which can be secured to a cabinet sub-panel via mounting lugs on the top and bottom, with a required cabinet size of 60.9 x 76.2 x 20.3 centimeters (24 x 30 x 8 inches). Key physical specifications include dimensions of 588x169x145mm (23.15×6.65×5.71 inches) and a weight of approximately 1.90 kg (4.2 pounds).

Technical performance parameters include a power consumption of 1.8W and power dissipation of 6.1 BTU/hr, with support for 85-264VAC, 47-63Hz AC power input. Operating temperature ranges vary by series: 0 degrees Celsius to 60 degrees Celsius for Series B, and -25 degrees Celsius to 60 degrees Celsius for Series C. It also has a vibration rating of 2 g @ 10-500 Hz and shock rating of 30 g, and is compatible with Logix 5560, 5570, and 5580 product series. The chassis holds multiple certifications including CCC, ATEX, IECEx Scheme, CE, and RCM.
