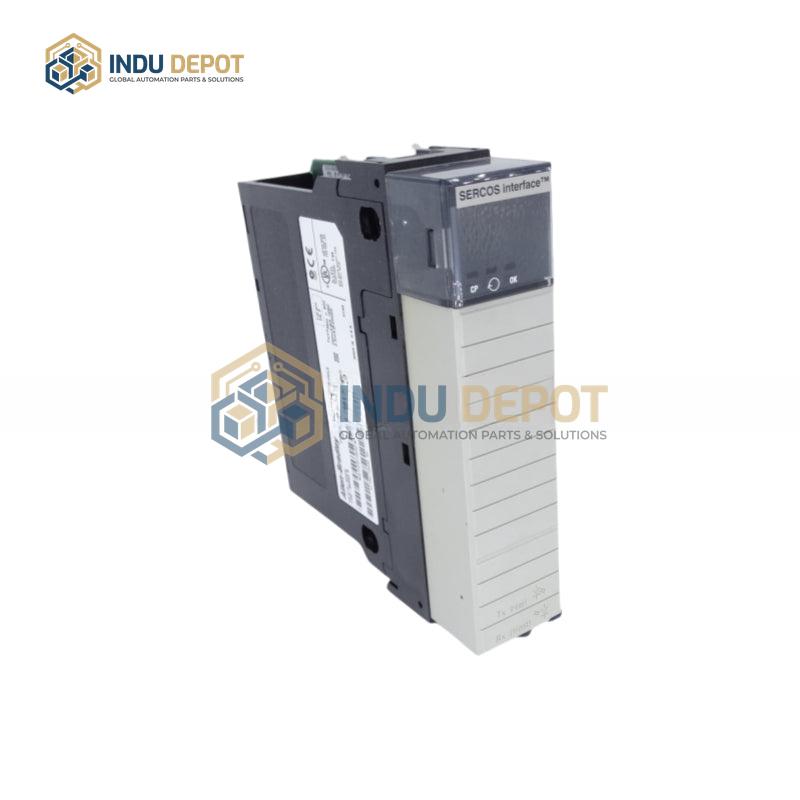

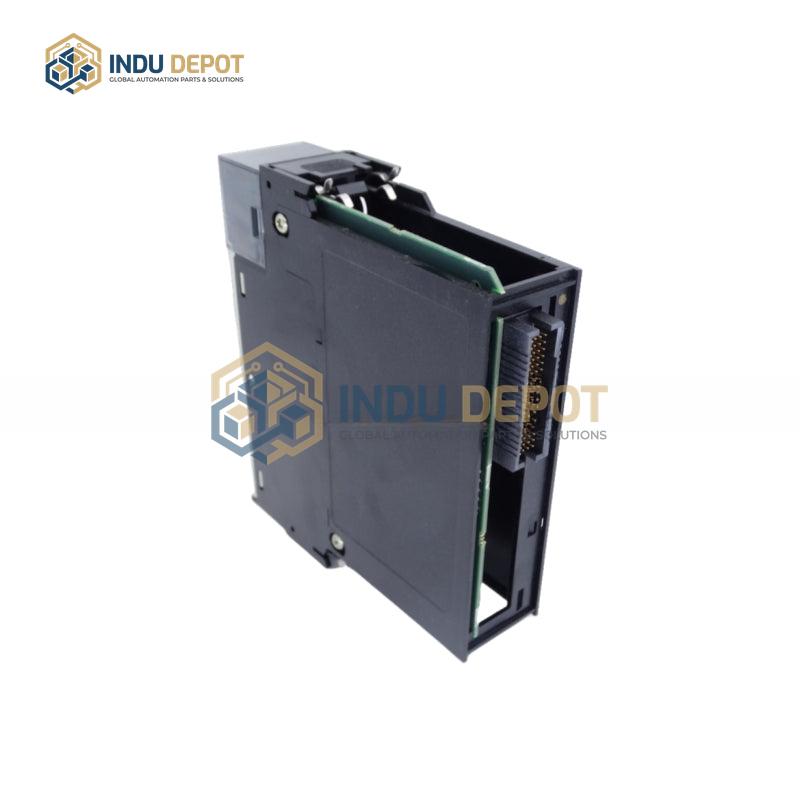

Allen-Bradley 1756-M08SE ControlLogix 8 Axis SERCOS Servo Module

Description

The Allen-Bradley 1756-M08SE ControlLogix 8 Axis SERCOS Servo Module is a high-performance motion control component designed for the ControlLogix series, optimized for precision industrial automation. It supports up to 8 axes of servo control, with multi-axis synchronization capabilities to ensure coordinated motion for complex tasks requiring synchronized servo drive operation. Equipped with SERCOS II or SERCOS III communication protocols, it delivers high-bandwidth, low-latency communication, supporting transfer rates of 4Mbps, 8Mbps, or up to 16Mbps to maintain exceptional motion control accuracy and response speed; cycle times adjust based on the number of connected drives, with 4Mbps rates delivering 0.5ms cycles for 2 drives and 2ms cycles for 8 drives, and 8Mbps rates delivering 0.5ms cycles for 4 drives and 1ms cycles for 8 drives.

Engineered for industrial environments, it operates reliably in temperatures from 0 degrees Celsius to 60 degrees Celsius, with a standard operating voltage of 24V and power draw of 5W for low-energy operation. Its modular, plug-and-play design enables easy installation into ControlLogix racks, and it is fully compatible with other ControlLogix modules to integrate seamlessly into complete control systems. Typical dimensions measure 15.2×5.1×15.2cm, with a compact, rack-mountable form factor. Ideal for high-speed precision motion control, multi-axis servo systems, and real-time motion control applications, it is widely used in CNC machinery, metallurgy, oil and gas, robotics, automotive manufacturing, packaging equipment, and printing machinery.
