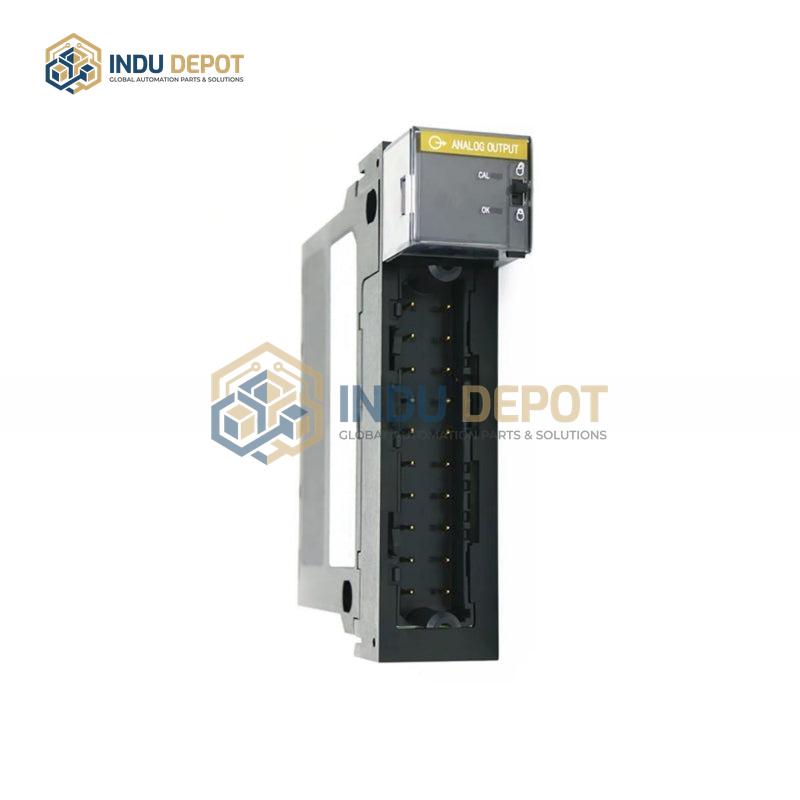

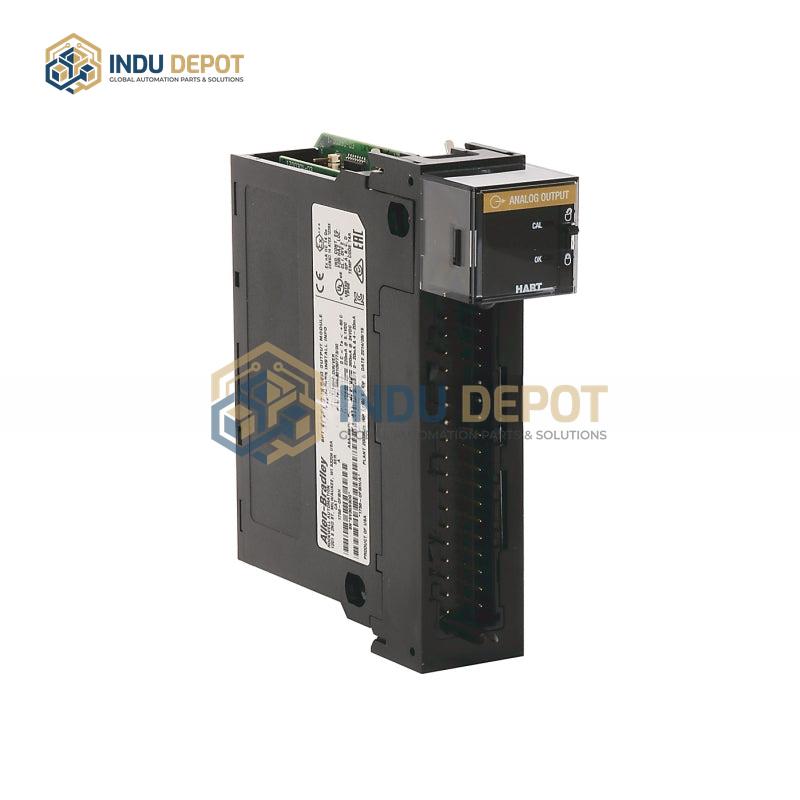

Allen-Bradley 1756-OF8IH ControlLogix 8-Point HART Isolated Analog Output Module

Description

The Allen-Bradley 1756-OF8IH is an 8-point HART isolated analog output module belonging to the ControlLogix 1756 series. Designed for industrial automation systems, this module features isolated analog output channels to minimize cross-channel interference and enhance signal integrity in harsh operating environments. It supports the HART communication protocol, enabling two-way digital communication with HART-enabled field devices alongside analog signal transmission, which simplifies configuration, monitoring, and diagnostics of connected equipment.

Equipped with an R-Ladder DAC output conversion method, the module ensures monotonic performance with no missing codes, delivering precise and consistent analog output signals for reliable control of process variables. As part of the ControlLogix platform, it integrates seamlessly with Logix controllers to support complex industrial control applications. While specific operating voltage details are not specified, the module follows the modular design standard of the ControlLogix 1756 series, allowing for flexible system expansion. It is ideal for use in process control, manufacturing automation, and other industrial applications that require high-accuracy analog output and advanced device communication capabilities.
