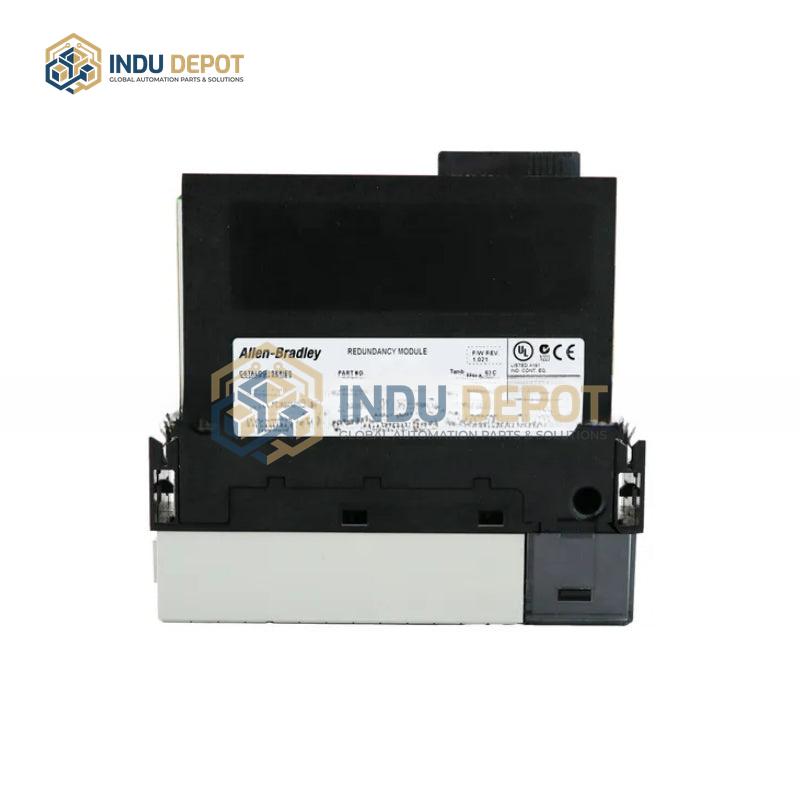

Allen-Bradley 1756-RM/A ControlLogix Redundancy Module

Description

The Allen-Bradley 1756-RM/A ControlLogix Redundancy Module is a component for building high-reliability industrial automation systems, supporting a dual-controller hot-standby architecture with automatic master/slave switching. Key features include shock-free failover: if the master controller fails, the slave controller takes over within 10ms to ensure uninterrupted system operation. It also provides real-time automatic synchronization between master and slave controllers to maintain program consistency, and supports redundant fiber channels to eliminate single points of failure, with compatible 1756-RM2 models reaching 1000Mbps communication speed.

Equipped with a high-speed processor, the module supports 100Mbps communication to meet high-speed data transmission and processing needs, and offers flexible connectivity via support for EtherNet/IP, ControlNet, RS-232, and other communication protocols and interfaces for easy integration with other equipment systems. It features scalability to expand input/output channels for different application scenarios, plus multiple safety protection and fault diagnosis functions for stable operation.

Technical specifications include current consumption of 1.16A at 5.1V DC and 3.4mA at 24V DC, maximum power consumption of 6W, heat dissipation of 21 BTU per hour, weight of 0.64 pounds, and an open housing. It is compatible with 1756-L7x controllers when paired for optimal scanning performance, and uses embedded LED displays for redundancy system and module health monitoring, requiring 1756-RMCx redundancy cables for controller synchronization.
