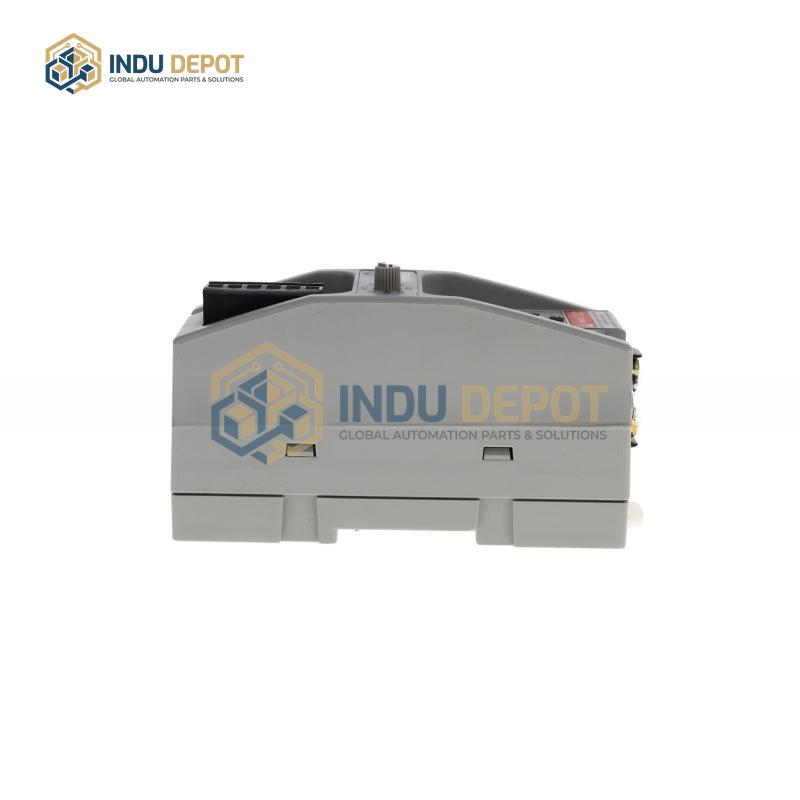

Allen-Bradley 1761-NET-AIC AIC+Advanced Interface Converter

Description

The Allen-Bradley 1761-NET-AIC AIC+ Advanced Interface Converter is a network adapter belonging to the MicroLogix 1761 series, designed to enable data transmission and sharing by connecting MicroLogix 1761 controllers and other DF1-compatible devices to Ethernet networks. Key features include an isolated 8-pin Mini DIN RS232 port that supports full-duplex DF1 protocol, and an RJ45 port for Ethernet connectivity. It operates on a 24VDC input power supply and mounts separately from PLCs, eliminating the need to occupy slots on modular PLCs or expansion modules. This converter supports 10/100 Mbps Ethernet connections with auto-negotiation, offering a maximum transmission distance of 100 meters, with fiber optic cable conversion available for longer ranges. A and B series models support 10-Base-T Ethernet, while C and D series models support 10/100 Base-T speeds. It also provides Simple Mail Transfer Protocol (SMTP) services for network-wide email transmission. Ideal for multiplexing embedded serial ports of connected devices, it allows legacy controllers to integrate with modern Ethernet networks without requiring additional Ethernet communication modules or full controller replacement, and supports remote data collection and control for dispersed equipment in applications like pump stations and water treatment facilities.
