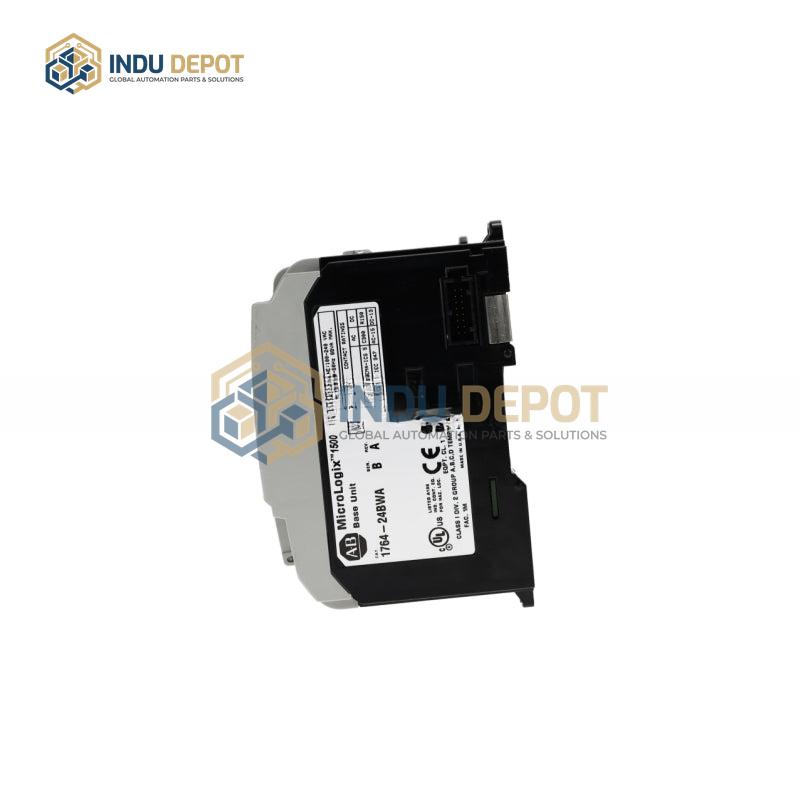

Allen-Bradley 1764-24BWA MicroLogix 1500 Programmable Controller Base Unit

Description

Allen-Bradley 1764-24BWA MicroLogix 1500 Programmable Controller Base Unit is an industrial-grade compact programmable logic controller (PLC) designed for small to medium-sized automation systems. It features an integrated compact structure with a built-in 24-point digital I/O configuration, including 16 inputs and 8 relay or transistor outputs, and supports 24V DC power supply. The unit has an IP20 protection rating, fits standard DIN rail mounting, and is equipped with status indicator LEDs to display power, operation, fault, and I/O channel status for easy on-site debugging and maintenance.

Powered by a high-speed microprocessor, it offers fast scan cycles and large program storage, supporting complex logic control, timing, counting, mathematical calculation, and data processing functions. It complies with the IEC 61131-3 international standard for programming languages, including Ladder Diagram (LD) and Function Block Diagram (FBD), and is compatible with mainstream engineering software platforms, sharing the same instruction set as MicroLogix 1000 and SLC series controllers. Additional features include a real-time clock (RTC) for timestamp recording, shift control, or scheduled task management, and it supports I/O expansion with Compact I/O modules to exceed 100 I/O points.

Operating within a temperature range of 0 to 55 degrees Celsius, with a storage temperature range of -20 to 70 degrees Celsius, and a relative humidity range of 5% to 95% without condensation, it delivers stable performance in harsh industrial environments. Measuring approximately 105.7 x 152.4 x 62.5 mm and weighing around 0.68 kg with a power consumption of about 10W, it is ideal for manufacturing, assembly, packaging, material handling, and process control applications.
