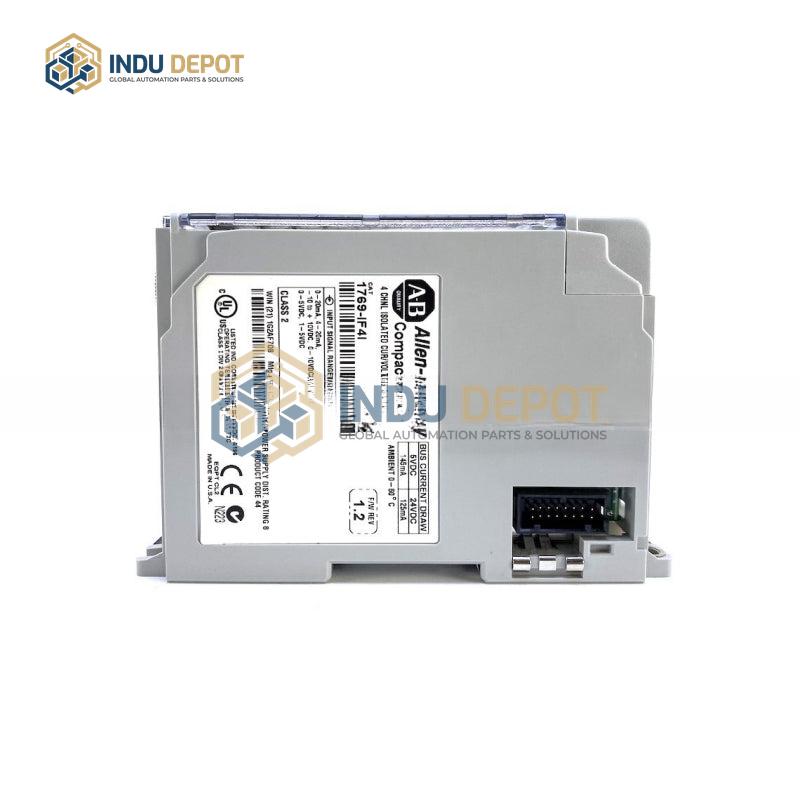

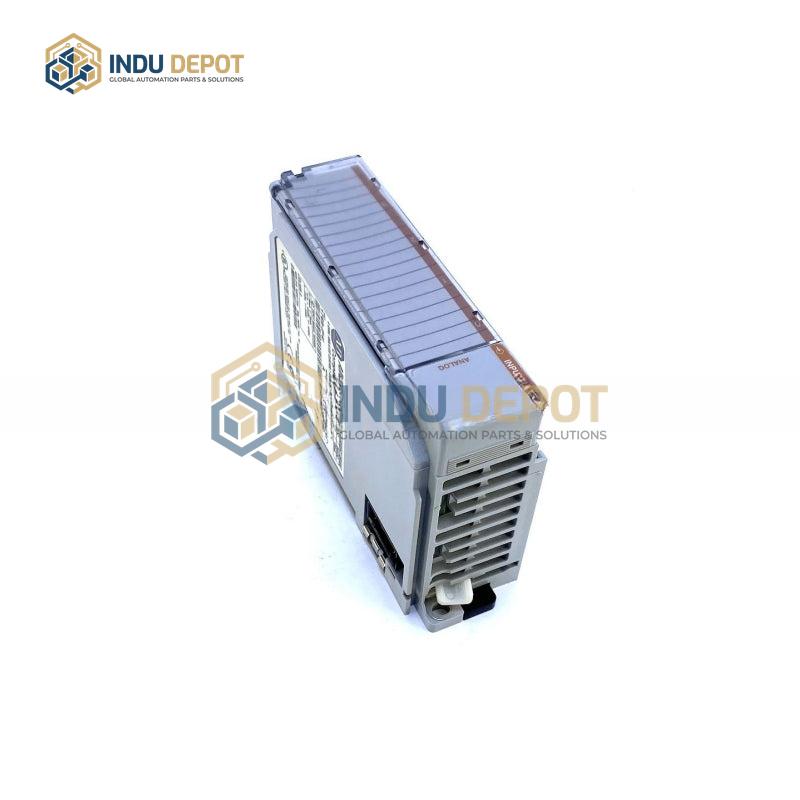

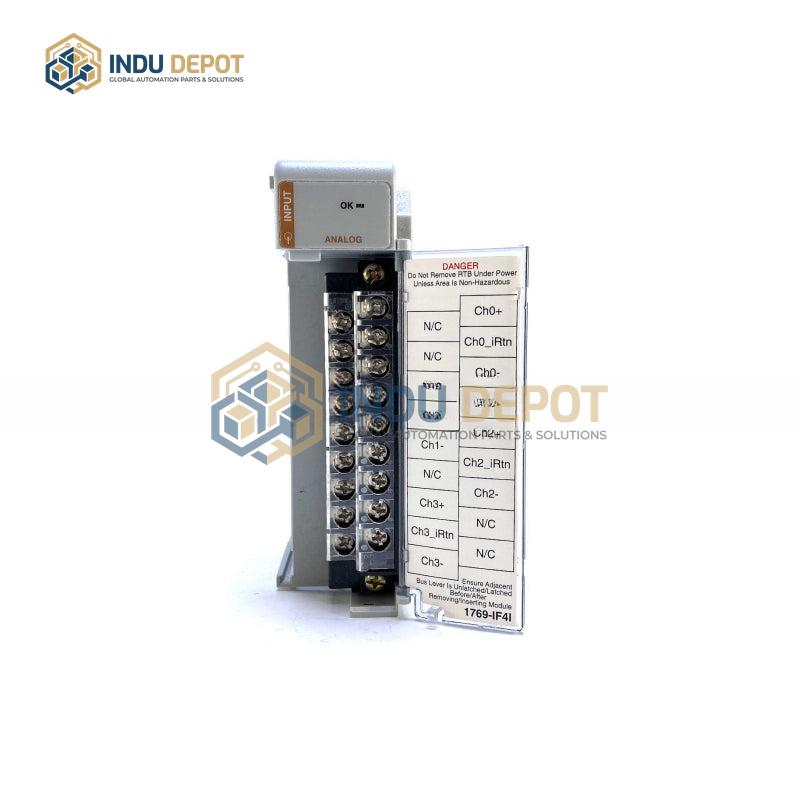

Allen-Bradley 1769-IF4I CompactLogix Isolated Analog Input Module

Description

The Allen-Bradley 1769-IF4I CompactLogix Isolated Analog Input Module is a compact, high-performance component in the CompactLogix series, designed for seamless integration into industrial automation control systems. It features 4 configurable differential or single-ended channels, which users can wire to match specific input requirements. Core functions include digital conversion and storage of analog sensor data, supporting accurate signal processing to optimize machine and factory automation system performance. A key feature is automatic calibration that triggers when channels are enabled or channel configurations are modified, ensuring consistent measurement precision. Important note: this module does not provide loop power for analog inputs, so users must supply a power source that matches the specifications of connected input transmitters. Its compact, efficient design saves space in industrial control panels, and it integrates seamlessly with CompactLogix PLCs to deliver reliable analog input data for system monitoring and optimization in diverse industrial automation applications.
