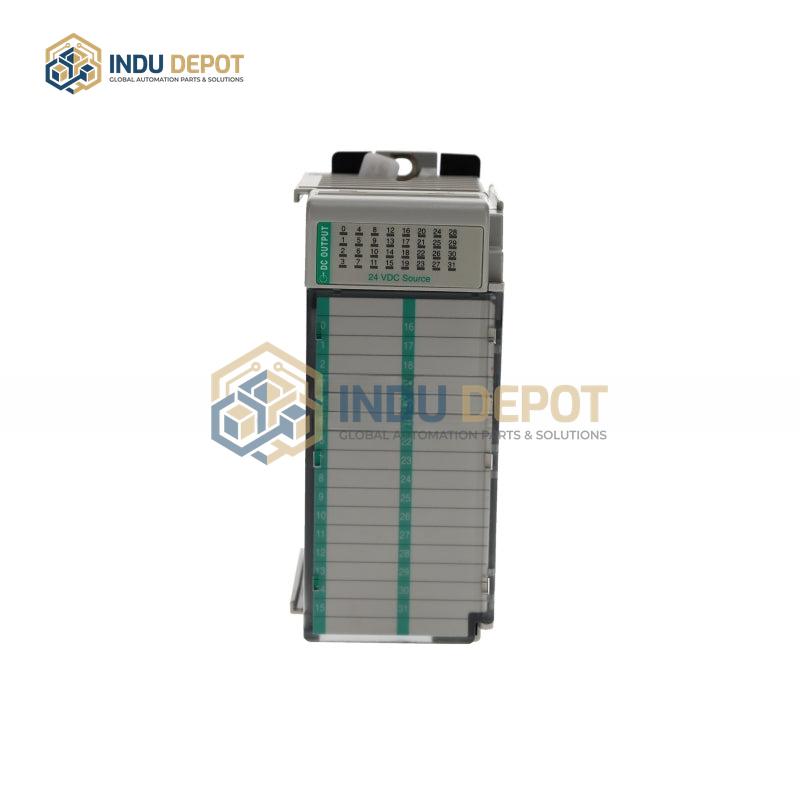

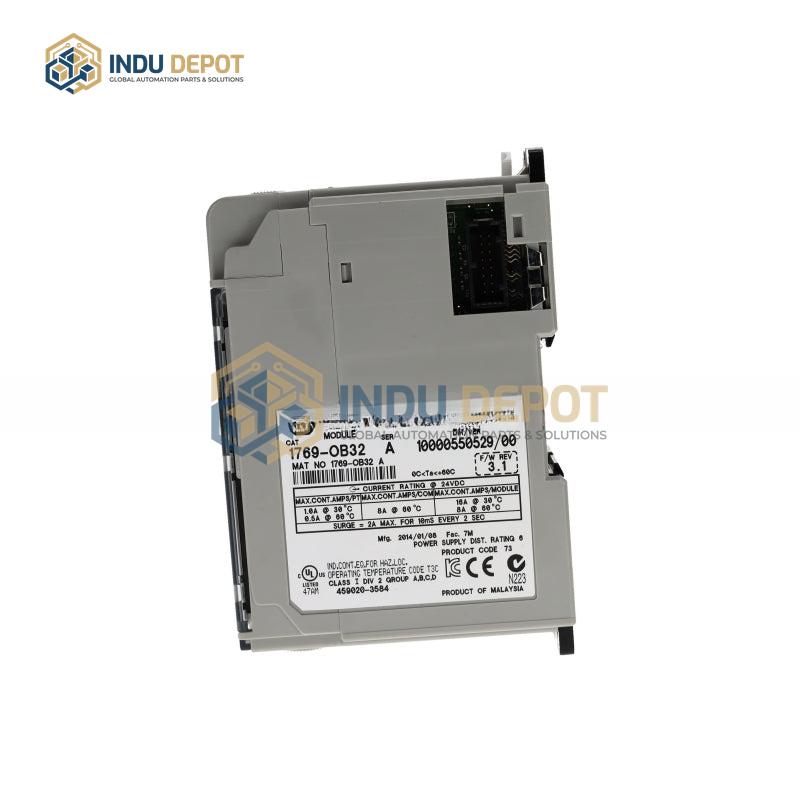

Allen-Bradley 1769-OB32 Compact Digital DC Output Module

Description

The Allen-Bradley 1769-OB32 Compact Digital DC Output Module is a member of the CompactLogix series, designed for industrial automation applications including simple machinery and general control systems. As a digital DC source output module, it features 32 sourcing output points (clarified from series and technical references) with a 24V DC operating voltage, supporting contact-type output to drive industrial devices like indicators, relays, and solenoids. It offers flexible installation options, compatible with both DIN rail and panel mounting, and integrates a built-in communication bus for seamless connection with other CompactLogix series modules, enabling easy system expansion. The module delivers reliable performance with a processing speed range of 0.72 to 16.3 microseconds, and has an IP20 safety rating for protected operation in controlled industrial environments. Its compact form factor, with dimensions of 107.5mm x 45mm x 16.8mm, saves cabinet space while providing high-density output capacity, making it suitable for space-constrained setups. It also supports hardware expansion and large program capacity, adapting to evolving control system requirements across sectors like machinery, electronics, and process automation.
