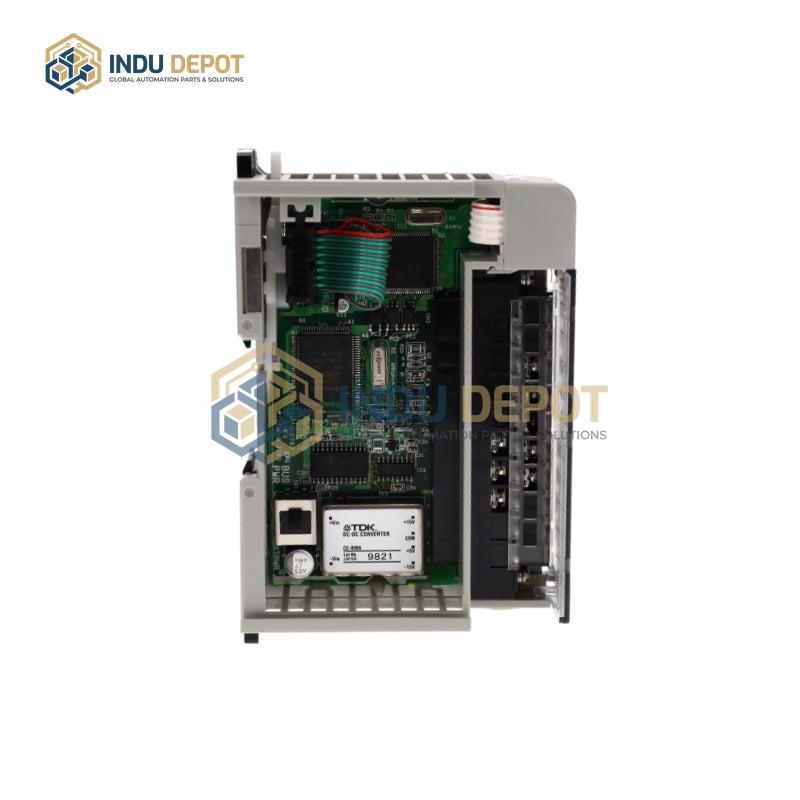

Allen-Bradley 1769-OF2 CompactLogix Analog Output Module

Description

The Allen-Bradley 1769-OF2 CompactLogix Analog Output Module is a 2-point analog output unit belonging to the CompactLogix series, designed for seamless integration with industrial automation systems. It is compatible with MicroLogix 1500 and CompactLogix controllers, offering flexible installation options including DIN rail or panel mounting for easy setup in compact spaces. Key physical specifications include a weight of 0.65 pounds, dimensions of 4.65 x 1.38 x 3.43 inches, and a compact package measuring 107.5 x 45 x 16.8 mm, with an IP20 protection rating suitable for cabinet-mounted applications.

Equipped with robust performance features, the module delivers high-precision analog output, with built-in overrange or underrange detection and indication, onboard calibration, and configurable channel settings for automatic input calibration. It also offers selectable response to broken input sensors, guiding output device operation during abnormal conditions to enhance system reliability. With strong adaptability and anti-interference capabilities, it supports stable operation in demanding industrial environments. Ideal for use in sectors including steel, petroleum, chemical, power, machinery manufacturing, and automotive, this module provides a cost-effective, easy-to-install solution for analog output control in both simple machinery and complex distributed automation systems.
