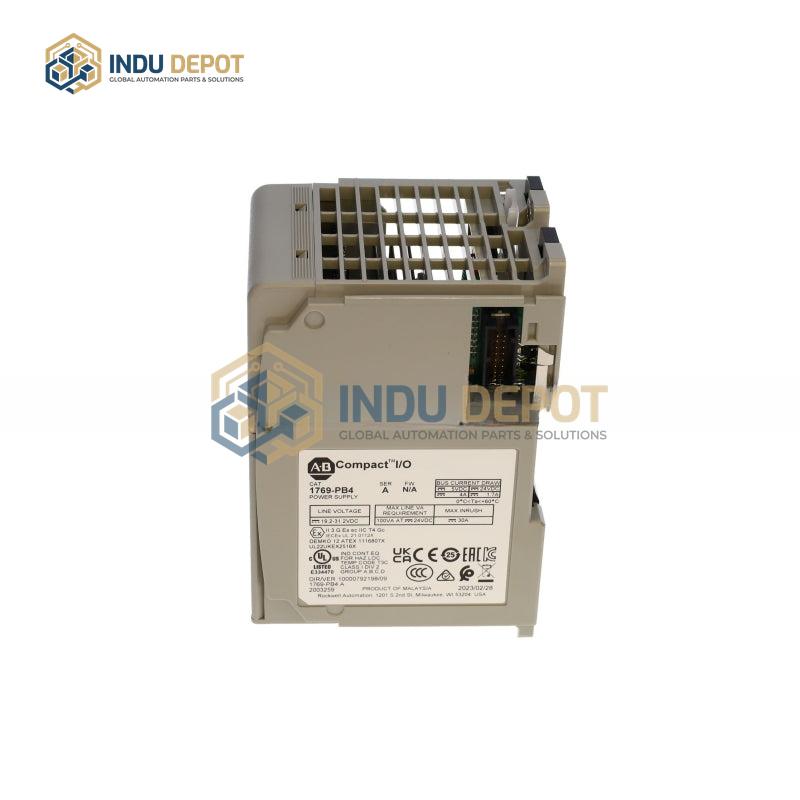

Allen-Bradley 1769-PB4 CompactLogix Power Supply Module

Description

The Allen-Bradley 1769-PB4 CompactLogix Power Supply Module is a dedicated power component for the CompactLogix platform, designed to deliver reliable power to industrial control systems. It operates on a DC input voltage range of 19.2 to 32 volts, with a power consumption of 100VA at 24V. Key output specifications include a 4.0A current capacity at 5V and 2.0A current capacity at 24V, providing stable power for connected Compact I/O modules and control components. As part of the CompactLogix platform, this module leverages the platform’s core advantages: a compact form factor that integrates high performance with a universal programming environment, universal networking capabilities, and a universal control engine. It supports scalable system configurations, making it ideal for small to medium-sized equipment-level control applications, with or without simple motion control. The module is suitable for both standalone machine control setups and interconnected systems that use EtherNet/IP, ControlNet, or DeviceNet networks, offering flexible, high-performance power support for diverse industrial automation needs.
