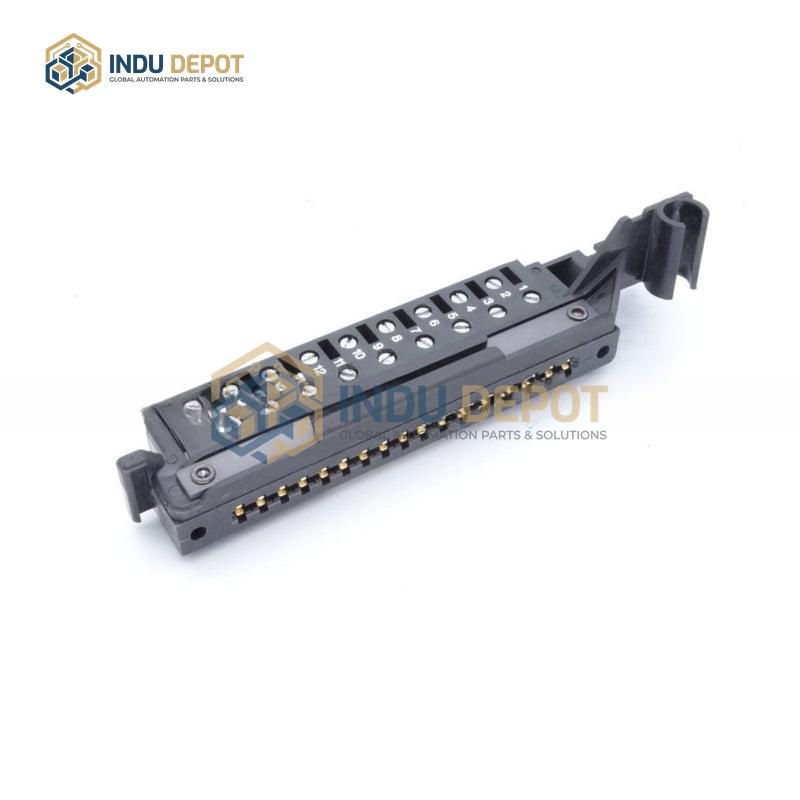

Allen-Bradley 1771-WF Field Wiring Terminal Bracket

Description

The Allen-Bradley 1771-WF Field Wiring Terminal Bracket is a component designed for industrial automation wiring and connectivity applications, compatible with Allen-Bradley control systems. While direct technical specifications for this exact model are not available, reference from comparable Allen-Bradley terminal and bracket components provides relevant technical context for similar field wiring solutions. These comparable units feature a 24V DC supply voltage, with a fixed rated current of 6A and maximum operating current of 6A, supporting DC voltage systems. They have an IP20 protection rating, suitable for indoor, low-hazard industrial environments with pollution level 2. Physical dimensions include a width of 12.5mm, height of 98.5mm, and depth of 80mm, with a module weight of approximately 0.13 lb. The push-in termination type supports two wire gauge ranges: PT10 AWG for 20 to 8 AWG (0.5 to 10 square millimeters) and PT2.5 AWG for 24 to 14 AWG (0.14 to 2.5 square millimeters), enabling secure, efficient wire connections for single-channel applications. This type of terminal bracket is intended to organize and secure field wiring connections for PLC and industrial control system I/O modules, streamlining installation and maintenance processes.
