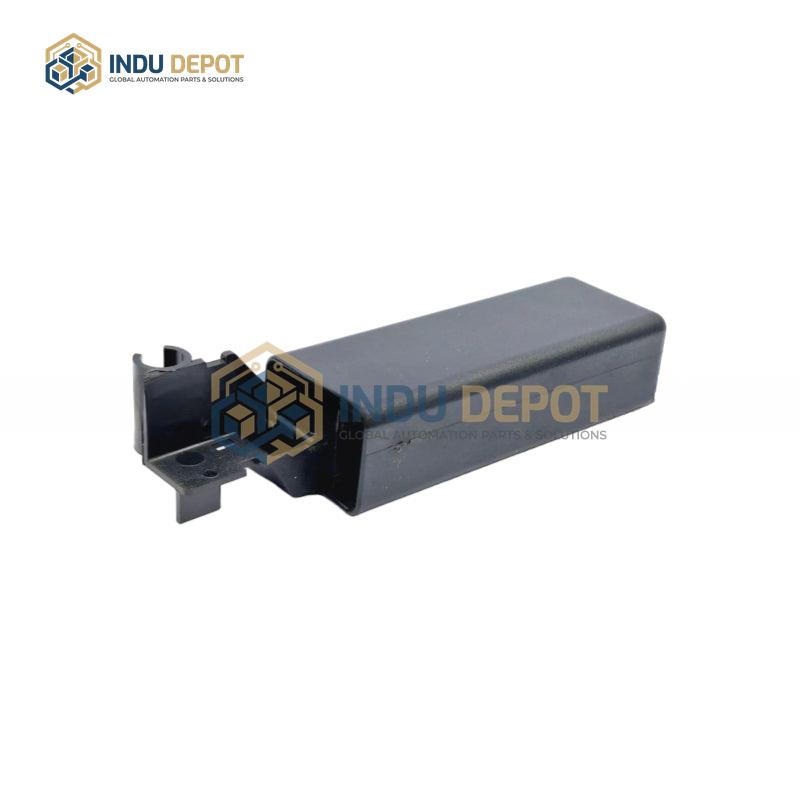

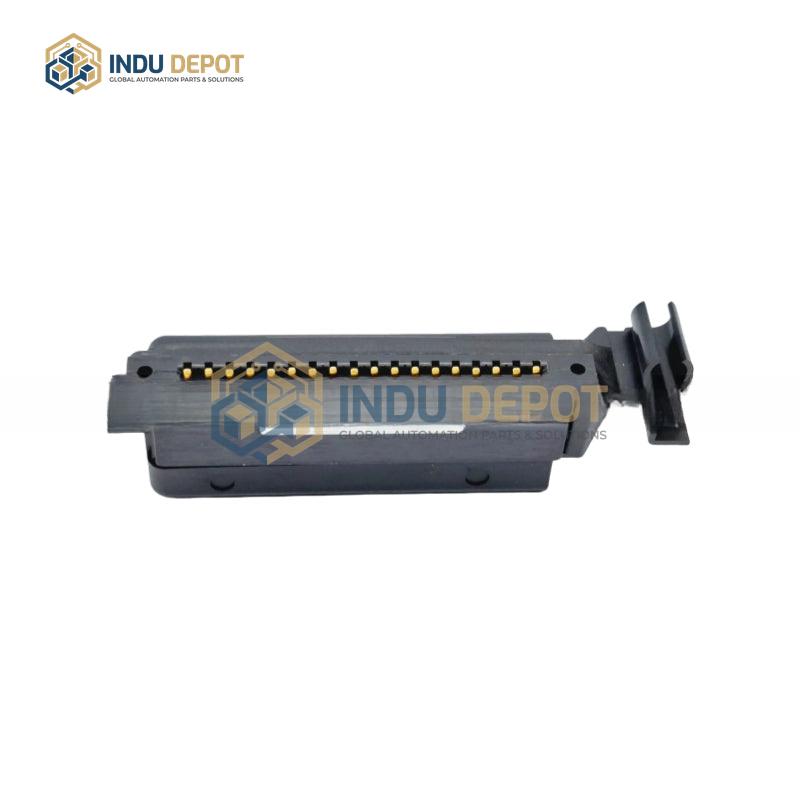

Allen-Bradley 1771-WI Thermocouple Wiring Arm For IXE

Description

The Allen-Bradley 1771-WI Thermocouple Wiring Arm is a dedicated accessory designed for use with the Allen-Bradley 1771-IXE analog input module, enabling tool-free module replacement without disconnecting field wiring. The paired 1771-IXE module features 8 thermocouple and millivolt input channels, supporting thermocouple types E, J, K, T, R, and S, plus a millivolt input range of +/-100mV. Key performance specifications include a 50 millisecond update time for all 8 channels, a backplane current load of 750mA at 5V, 4.25 watts of power consumption, and heat dissipation of 14.5 BTU per hour. Equipped with cold end compensation, the module offers user-selectable high and low temperature alarms, automatic offset and gain calibration without potentiometers, and 1 degree Celsius or 1 degree Fahrenheit temperature resolution. It is a single-slot module that installs directly into 1771 chassis slots, compatible with any PLC5 chassis, and features front-panel green RUN and red FLT status indicators. Additional functionality includes power-on self-diagnostics, open-circuit detection for thermocouple faults, and support for temperature measurement ranges spanning -270 to 1780 degrees Celsius, making it ideal for industrial automation temperature and analog signal acquisition applications.
