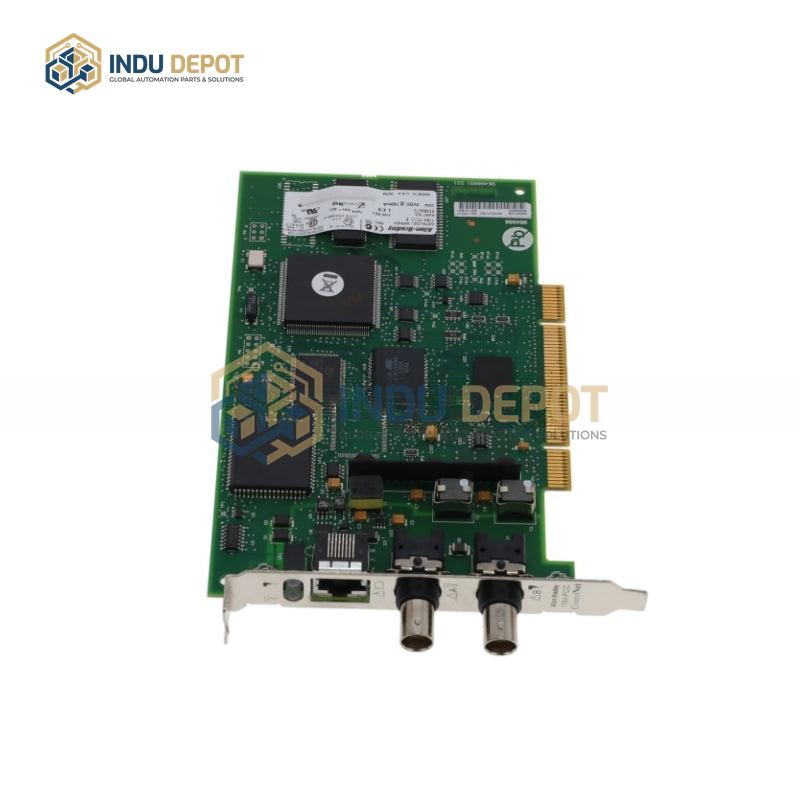

Allen-Bradley 1784-PCIC ControlNet PCI PC Comms Card

Description

The Allen-Bradley 1784-PCIC ControlNet PCI PC Comms Card is an industrial communication component designed for industrial automation systems, enabling fast, reliable data exchange between host computers and ControlNet devices. As a universal PCI card, it ensures accurate, stable data interaction to support seamless system operation. It is compatible with control systems including the PLC 5 series, integrating smoothly into ControlNet-based automation architectures to work collaboratively with other industrial devices.

Key hardware features include dual interface options: an RJ-45 connector for linking programming terminals to ControlNet devices, and redundant BNC connectors for ControlNet network connections, which significantly enhance network reliability and stability. Technical specifications include a modular structure with field installation capability, a hard PLC LD instruction processor, and support for up to 550 I/O points. It operates at 250V, with an output frequency of 3200Hz, a processing speed of 240 microseconds, 512mb program capacity, and 1024mb data capacity. The card is programmable, weighs 2kg, and is rated for operation at 30 degrees Celsius and 60% relative humidity, with 3C product certification. It requires no custom processing.
