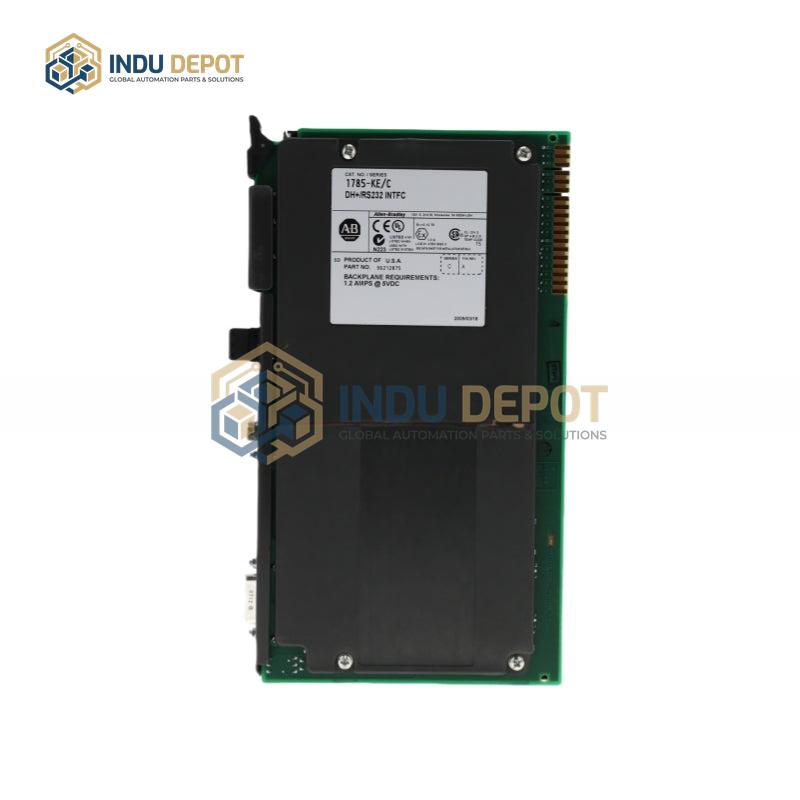

Allen-Bradley 1785-KE Communication Interface Module

Description

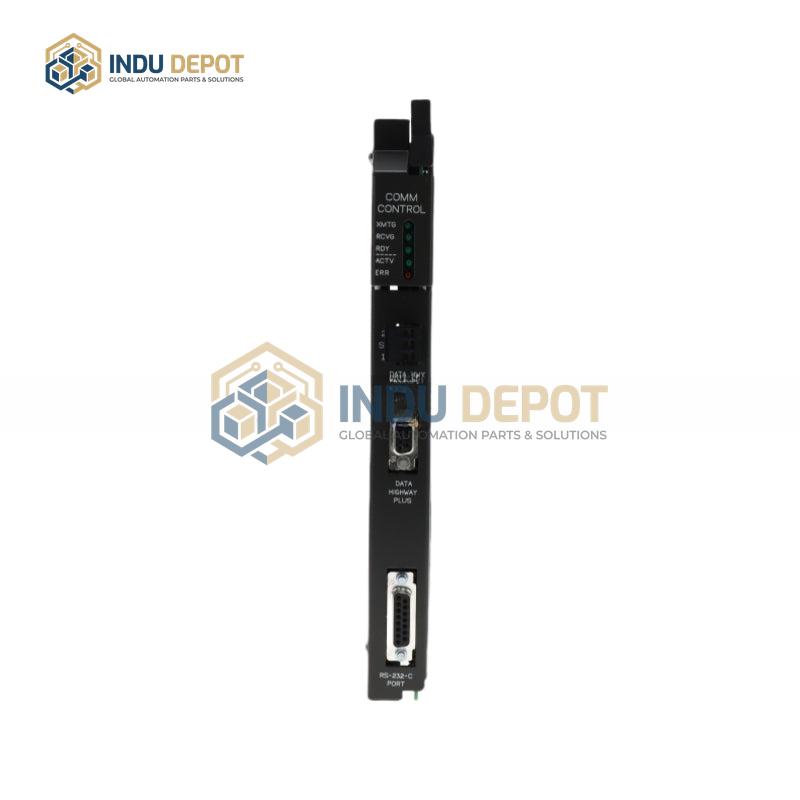

The Allen-Bradley 1785-KE Communication Interface Module is a compact, space-saving component belonging to the PLC-5 series. With dimensions of approximately 2.2cm x 12.4cm x 12.6cm and a weight of 0.1kg, it is designed for easy installation in 1771 I/O chassis, minimizing space usage in industrial control setups. Equipped with two dedicated communication ports, this module enables versatile data exchange across industrial networks. Its DH+ port connects to Data Highway Plus networks, supporting high-speed data communication at up to 57,600 bps for seamless connectivity with other PLC-5 series devices and industrial equipment. The RS-232-C interface offers flexible connection to RS-232-C compatible devices such as computers and graphic software, with selectable transmission speeds ranging from 110 bps to 19,200 bps via physical switches. This dual-port design makes the 1785-KE an ideal solution for integrating PLC-5 systems with both local and networked industrial control components, supporting efficient data transfer, remote monitoring, and programming functions in automated manufacturing, process control, and discrete industrial applications.
