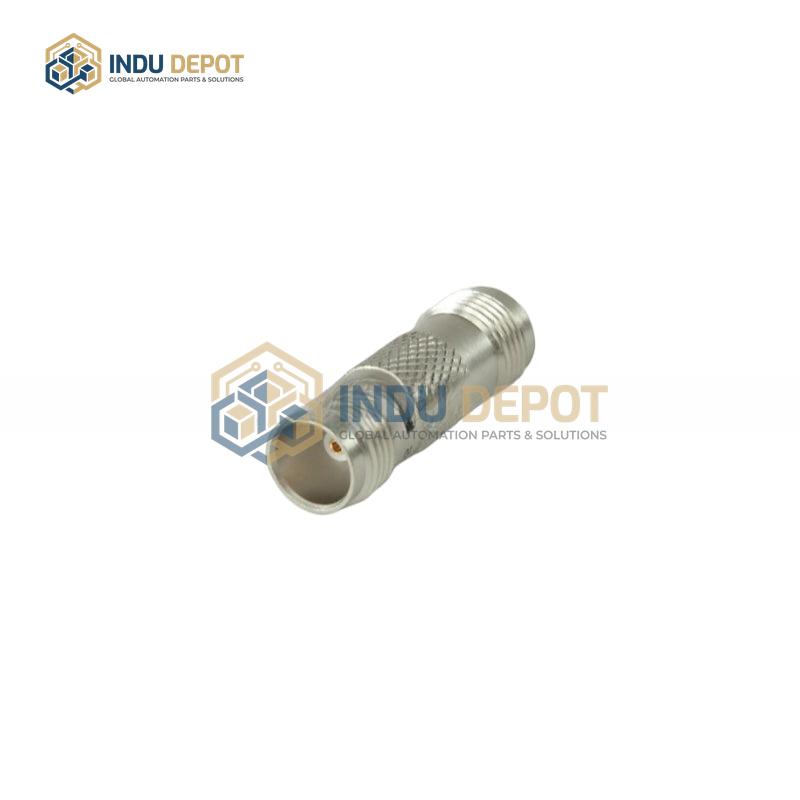

Allen-Bradley 1786-BNCP ControlNet BNC Coaxial Connector

Description

The Allen-Bradley 1786-BNCP ControlNet BNC Coaxial Connector is a specialized industrial communication component designed for ControlNet networks. It features a BNC bayonet-style interface that enables quick plug-and-play operation, simplifying installation and on-site maintenance. This connector supports 0 to 4 GHz signal transmission, meeting high-frequency communication demands in industrial settings, and is optimized for ControlNet networks with a 5 Mbps data transfer rate to ensure stable, high-speed data and control signal transmission.

Offering selectable 50 ohm or 75 ohm characteristic impedance, it matches different coaxial cable types to minimize signal reflection and loss, enhancing communication reliability. Constructed from high-grade corrosion-resistant materials like brass and copper alloys, some variants include gold-plated surfaces to boost conductivity and corrosion resistance. It has a standard IP30 protection rating for indoor industrial environments, with select models featuring an IP67 rating for use in outdoor or harsh, dusty, humid settings. Operating within a temperature range of -20 to 80 degrees Celsius (-4 to 176 degrees Fahrenheit), it is ideal for connecting ControlNet network devices such as PLCs, drives, and HMIs, and is widely applied in automated production lines, robot control, power systems, and water treatment processes.
