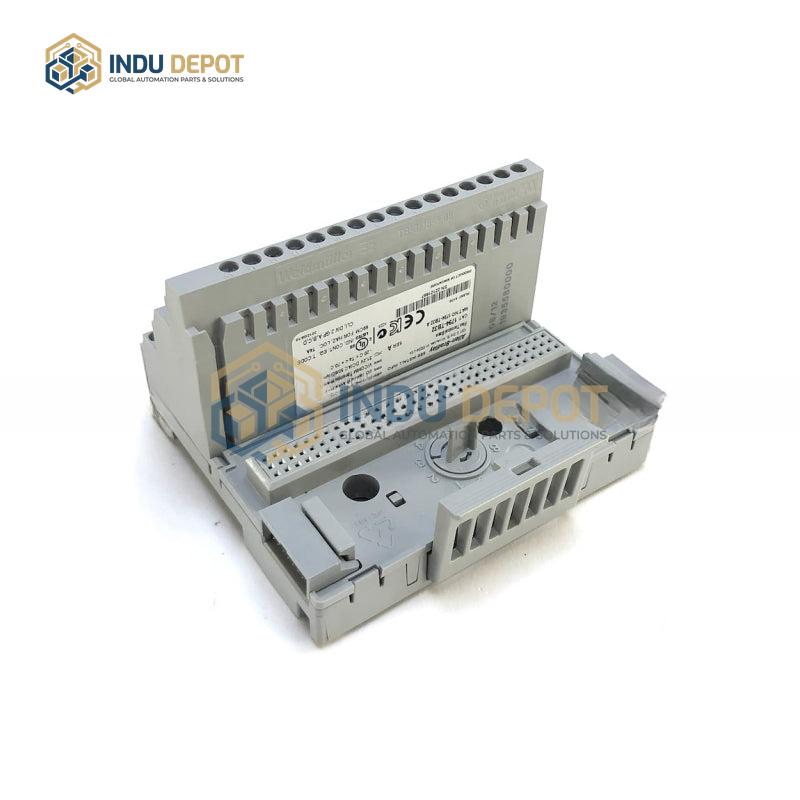

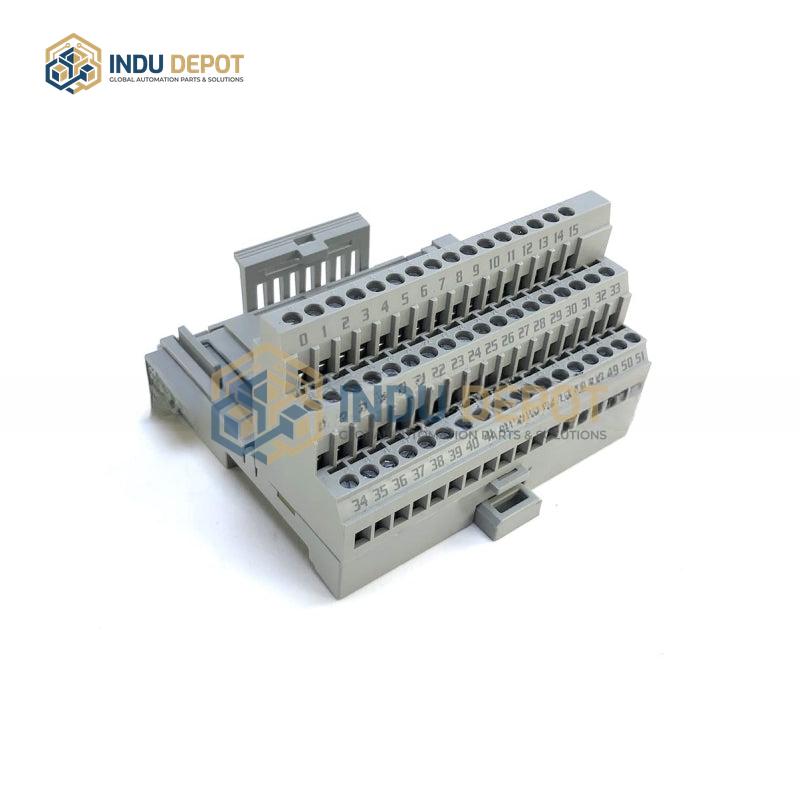

Allen-Bradley 1794-TB32 Flex I/O Terminal Base Unit

Description

The Allen-Bradley 1794-TB32 Flex I/O Terminal Base Unit is a dedicated terminal base designed for use with the Allen-Bradley Flex I/O product line, specifically engineered to pair with the 1794-IB32 Flex I/O DC digital input module as part of distributed I/O systems. As a key component of modular automation setups, this terminal base enables flexible integration of field devices into industrial control systems. It supports hot insertion and removal of compatible modules, allowing for quick reconfiguration of I/O setups to adapt to changing automation requirements without system shutdowns. The 1794-IB32 module it pairs with features 32 current-sinking input channels, an input voltage range of 19.2 to 31.2 VDC, and a nominal signal level of 24 VDC, each equipped with an LED indicator for real-time channel activity monitoring. Together, the 1794-TB32 and paired modules facilitate connection of diverse field instruments and electrical equipment, including pushbuttons, limit switches, proximity sensors, float switches, process switches, and relay contacts, to centralized control systems, delivering the modularity, space efficiency, and reliability characteristic of the Flex I/O series for industrial automation and process control applications.
