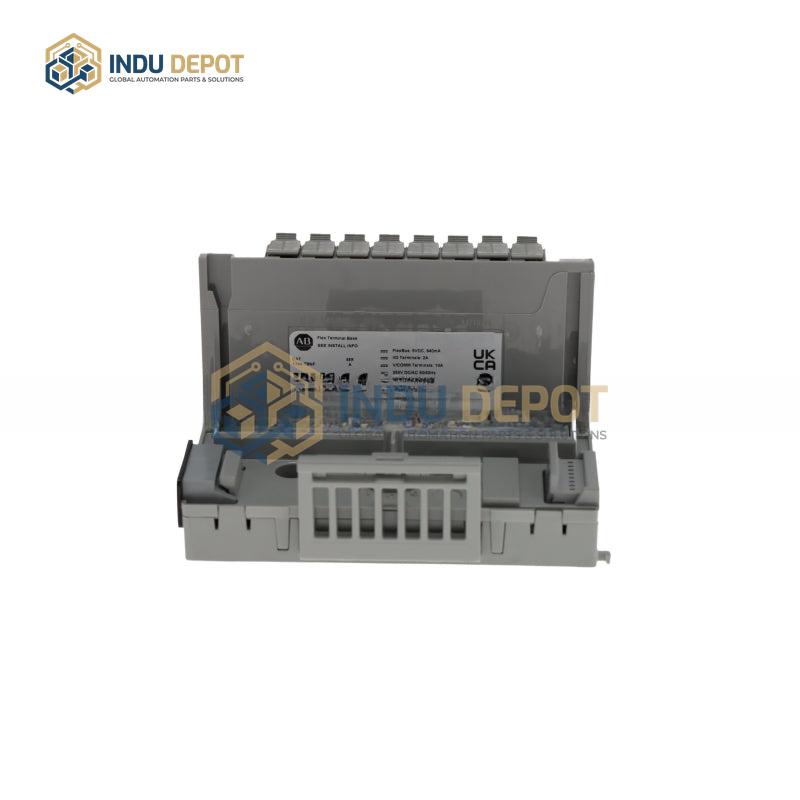

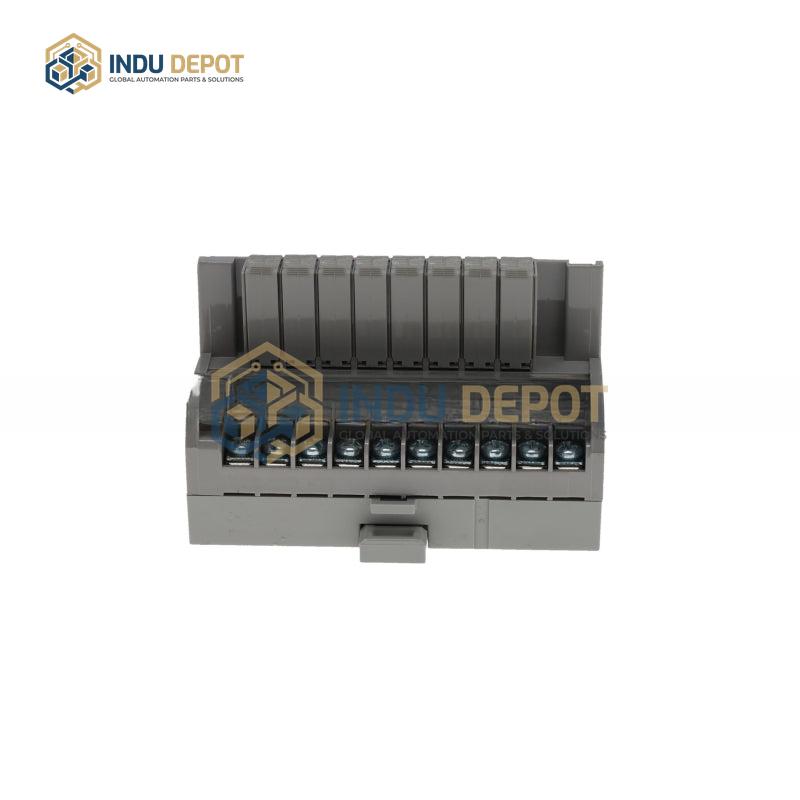

Allen-Bradley 1794-TBNF Terminal Base Unit

Description

The Allen-Bradley 1794-TBNF Terminal Base Unit is part of the Allen-Bradley 1794 series of terminal base components, designed for use with industrial I/O systems. While direct technical specifications for this model are not available, it aligns with the design and functionality of comparable 1794 series terminal bases, such as the 1794-TB3TS. As a terminal base unit, it serves as a mounting and connection interface for compatible I/O modules, facilitating secure wiring and signal transmission in automated control setups. Similar 1794 series terminal bases feature spring clamp connections for reliable, tool-free wire termination, and may include conformal coating to enhance resistance to harsh industrial environments, including moisture, dust, and corrosive elements. These units are engineered to integrate with 1794 Flex, Flex Ex, and Flex XT I/O systems, supporting applications in manufacturing, process control, and discrete automation where modular, scalable I/O architecture is required. They typically provide a stable platform for modules, ensuring proper electrical connectivity and mechanical alignment to maintain system performance in demanding operational conditions.
