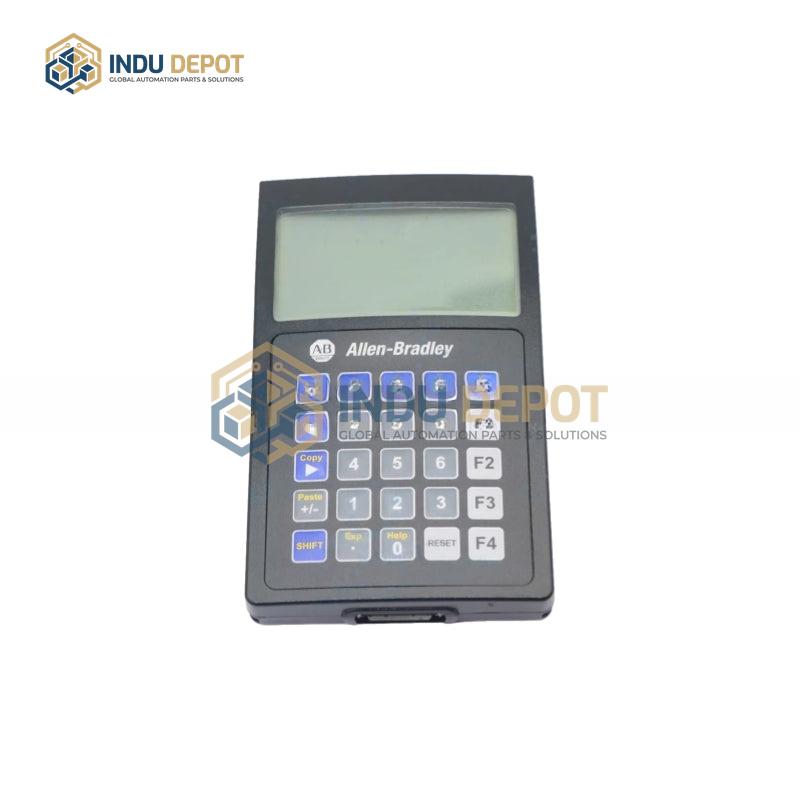

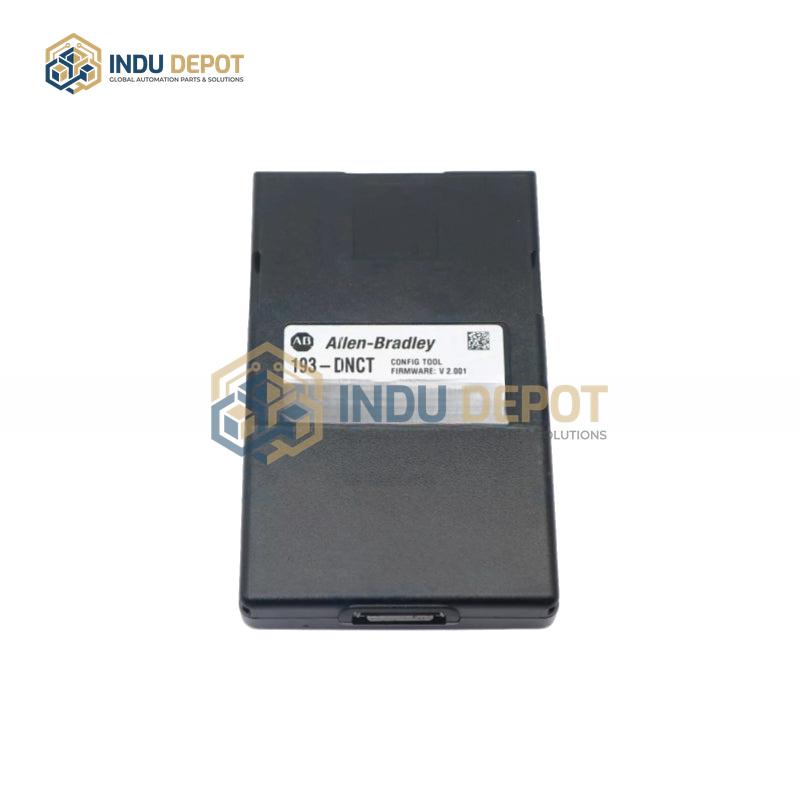

Allen-Bradley 193-DNCT Devicenet Configuration Terminal

Description

The Allen-Bradley 193-DNCT Devicenet Configuration Terminal is a handheld industrial device designed for debugging, configuring, programming, and monitoring other devices on a DeviceNet network. Key functions include viewing all connected network devices and displaying individual device statuses, as well as uploading, storing, and downloading full device configurations across the network. It also provides users with DeviceNet physical layer diagnostic data and network bandwidth statistics to support network performance analysis and troubleshooting.

Technical specifications include a power supply option of 24V DC (±10%) or 120/240V AC (varies by specific model), with a typical power consumption of ≤10W. Communication protocol support includes EtherNet/IP, DeviceNet, or ControlNet (varies by module version), with a DeviceNet baud rate of 500 Kbps and a 5-pin M12 connector for DeviceNet connections. Operating temperature ranges from 0 degrees Celsius to 60 degrees Celsius, with a storage temperature range of -40 degrees Celsius to 85 degrees Celsius. It has an IP20 protection rating (requires installation in a control cabinet) and meets IEC 60068-2-6 standards for vibration resistance, withstanding 5g at 10 to 500Hz.
