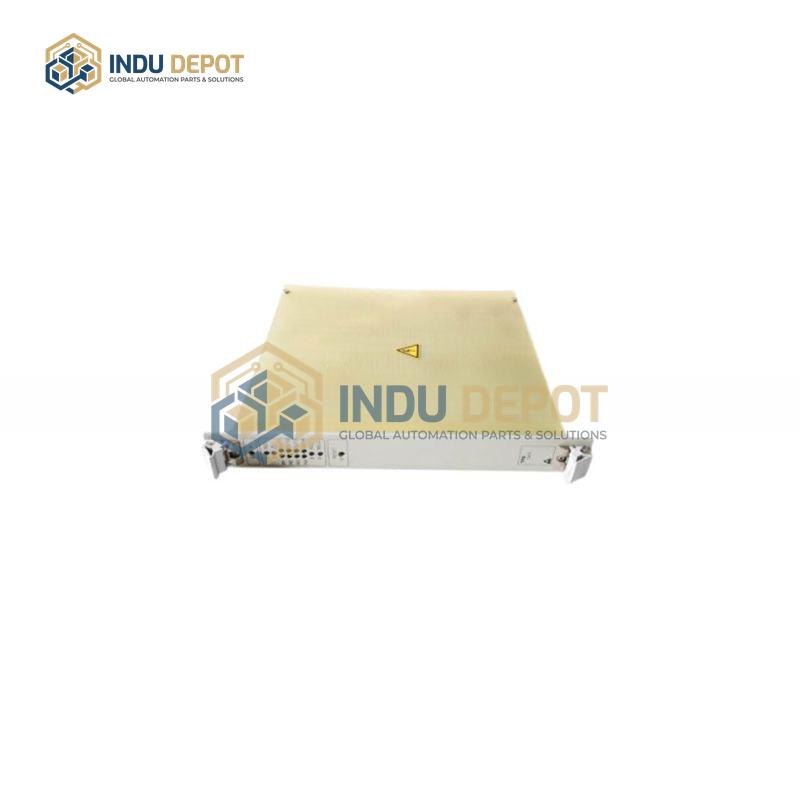

Analog Input Board G4AI ABB 1KHL015623R0001
Description
Analog Input Board G4AI ABB 1KHL015623R0001 is an industrial analog input module designed for integration with DCS and PLC systems to collect and process field analog signals. No direct technical specifications were found for this exact model, so details below are based on comparable ABB analog input modules in the same product series.
| Specification | Value |
|---|---|
| Input Channels | 4 to 8 channels (varies by model) |
| Input Signal Types | 1-5V voltage, -30mV to +75mV, thermocouple (B, C, E, J, K, L, N, R, S, T, U), Pt100 RTD |
| Accuracy | ±0.1% full scale (varies by model) |
| Resolution | 15 to 16 bits |
| Bus Protocol | PROFIBUS DP, supports communication rates 9.6 kBit/s to 12 MBit/s |
| Isolation | Optocoupler isolation, channel-to-channel isolation up to 2500V AC |
| Operating Temperature | -10 to 60 degrees Celsius, -20 to 60 degrees Celsius, or -40 to 70 degrees Celsius (varies by model) |
| Power Supply | 24V DC ±15%, dual redundant input supported on select models |
| Installation | 35mm DIN rail mount, plug-and-play |
| Protection Rating | IP30 |
Key Features:
- High-precision analog signal acquisition with low noise and high common mode rejection ratio (up to 120 dB)
- Built-in cold end compensation for thermocouple measurements to ensure accuracy
- Intelligent self-diagnosis and signal alarm functions with LED status indicators
- Industrial-grade design with vibration resistance and wide temperature tolerance for harsh environments
- Seamless integration with ABB S800 I/O system and other compatible PLC/DCS platforms
- Channel isolation to prevent signal cross-talk and enhance system reliability
Applications:
- Chemical and petrochemical industry for monitoring reaction tank temperature, pressure, and flow
- Power industry for tracking generator, transformer, and electrical equipment operating parameters
- Metallurgy industry for collecting blast furnace, converter, and rolling mill process data
- Pharmaceutical industry for controlling production environment temperature, humidity, and material flow
- General manufacturing for automated production line signal acquisition and process control
Related Models:
- ABB AI810
- ABB AI820 3BSE008544R1
- ABB AI845 3BSE023675R1
- ABB AI830A
- ABB AI835A
- ABB AI895
