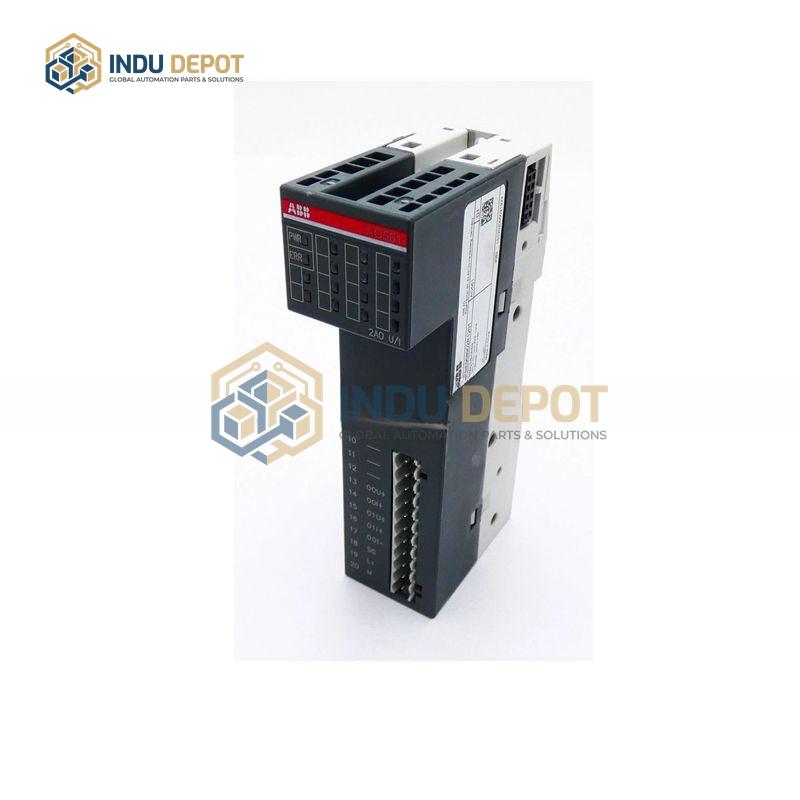

Analog Output Module AO561 ABB AC500 PLC Series

Description

AO561 Analog Output Module is a member of the ABB AC500 PLC Series, specifically designed for small industrial control systems and mechanical equipment as a compact, cost-effective control solution. It features a modular structure that supports flexible configuration to match diverse control requirements, with versatile wiring options for I/O modules to simplify installation and adaptation. As part of the AC500-eCo compact automation platform, it integrates seamlessly with the full AC500 system, and works with universal programming software for unified system setup. The module enables easy data exchange via the built-in COM1 port and optional COM2 port, supporting communication protocols like MODBUS master/slave and CS31 master. Key technical specifications include 2 analog output channels, selectable resolution of 11 bits plus sign bit or 12 bits, and 11-position screw terminal wiring with no PCB terminals included. It holds CE, BV, and GL certifications, and complements the AC500-eCo’s integrated CPU I/O to deliver a space-efficient, flexible, and user-friendly automation solution for small-scale control tasks.
