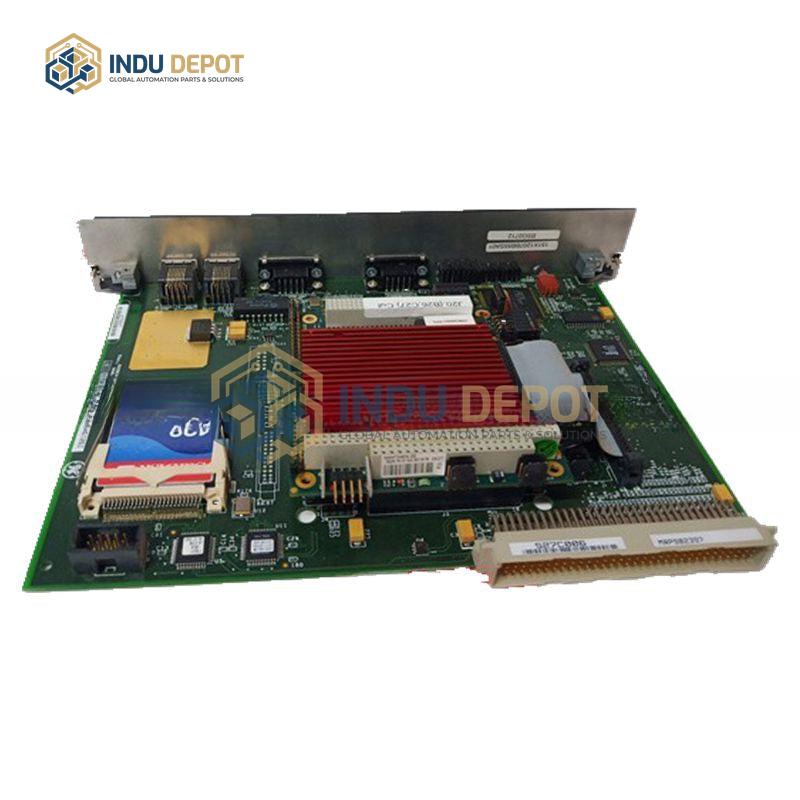

Application Control Layer Module IS200ACLEH1BCB(IS215ACLEH1B) GE
Description
IS200ACLEH1BCB (IS215ACLEH1B) Application Control Layer Module is an application control layer module from the GE Mark VI Speedtronic series, designed to integrate with Mark VI control systems and innovative series controllers for automation and monitoring of industrial turbines.
| Specification | Value |
|---|---|
| Processor | 4th generation DX4-100 486 microprocessor, 16kb L1 cache, 100mhz operating frequency, 33MT/s bus rate, 33MHz bus speed, 0.3V core voltage tolerance |
| Memory | 8MB 60Ns EDO non-parity dynamic RAM, dual-port RAM on local bus, 128KB level 2 cache |
| Input Voltage | 12 – 48VDC |
| Output Voltage | 5VDC |
| Operating Temperature | -40 to 85 degrees Celsius |
| Dimensions | 170mm x 39.5mm x 107.5mm |
| Weight | Approximately 120 grams |
| Protection Rating | IP20 |
| Mounting Method | DIN-rail mounting |
Key Features:
- High-speed data processing with advanced 486 microprocessor architecture
- Multi-interface connectivity including 10BaseT Ethernet, two COM connectors, and PC-compatible interface
- Integrated status indicators with function, status, and ISBus LEDs plus reset switch on front panel
- Supports multiple communication protocols including Modbus and Profibus
- Power management with stable voltage output and overload protection
- Modular design for easy installation, maintenance, and replacement
Applications:
- Automation and monitoring of industrial turbines
- Integration with GE Mark VI Speedtronic control systems
- Industrial power generation, energy, and chemical processing facilities
