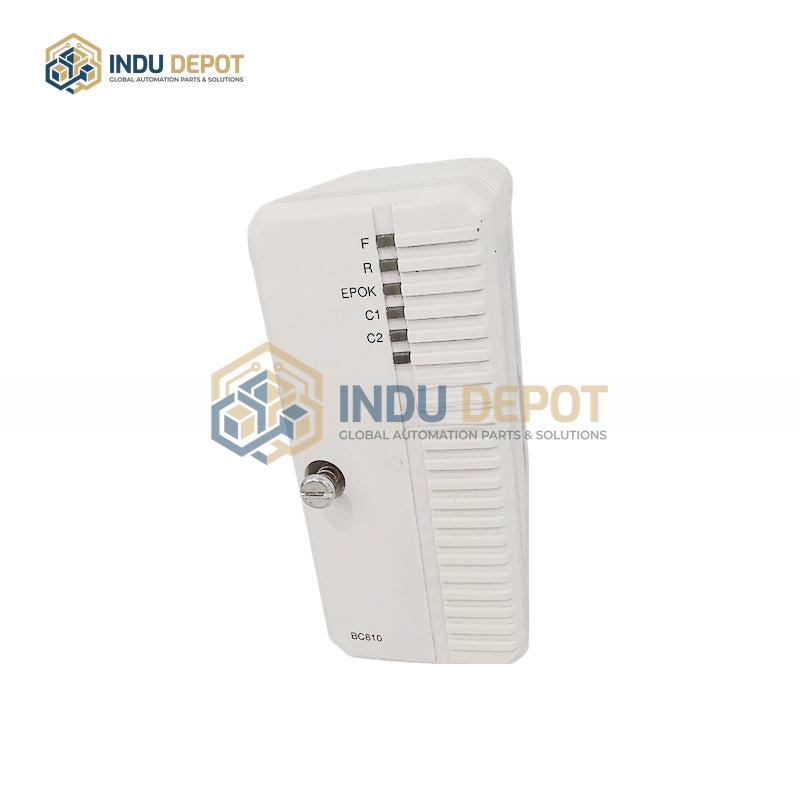

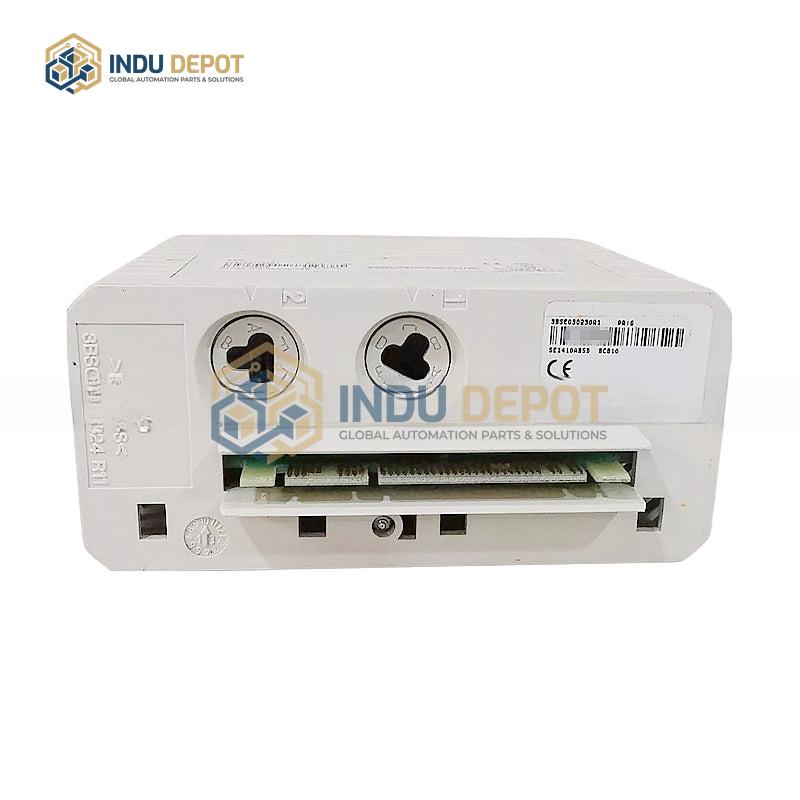

BC810 ABB Two Screw Connector
Description
BC810 ABB Two Screw Connector Series is a line of CEX-Bus interconnection and PLC expansion modules designed to enable seamless data communication and system integration in industrial automation setups. The series includes two primary variants: BC810K01 (CEX-Bus interconnection unit) and BC810K02 (expansion PLC module).
| Specification | Value |
|---|---|
| Product Types | CEX-Bus interconnection unit, expansion PLC module |
| Dimensions | 127.5mm x 185mm x 59mm |
| Operating Temperature | +5 to +55 degrees Celsius; non-operating: -40 to +70 degrees Celsius |
| Humidity Tolerance | Up to 85% |
| Supported Protocols | Profibus, Profinet, Modbus |
| Power Supply | BC810K01: 220V or 24V DC; BC810K02: 19.2 to 30V DC (24V nominal) |
| Protection Rating | IP20 |
Key Features:
- Supports hot swap for easy system maintenance without downtime
- Redundant communication interfaces for enhanced system reliability
- Durable die-cast powder-coated aluminum housing for harsh industrial environments
- Multiple communication interfaces including Ethernet, RS485, RS232, and USB for configuration
- BC810K02 includes integrated 8-channel DI/DO for local logic control
Applications:
- Process control systems in oil and chemical industries
- Power generation and substation monitoring and control
- Smart factory automation and cross-protocol device integration
- Railway and transportation system data communication networks
Related Models:
- BC810K01 (3BSE031154R1)
- BC810K02
- TP857 Backplane
- TB850 CEX Bus Terminator
