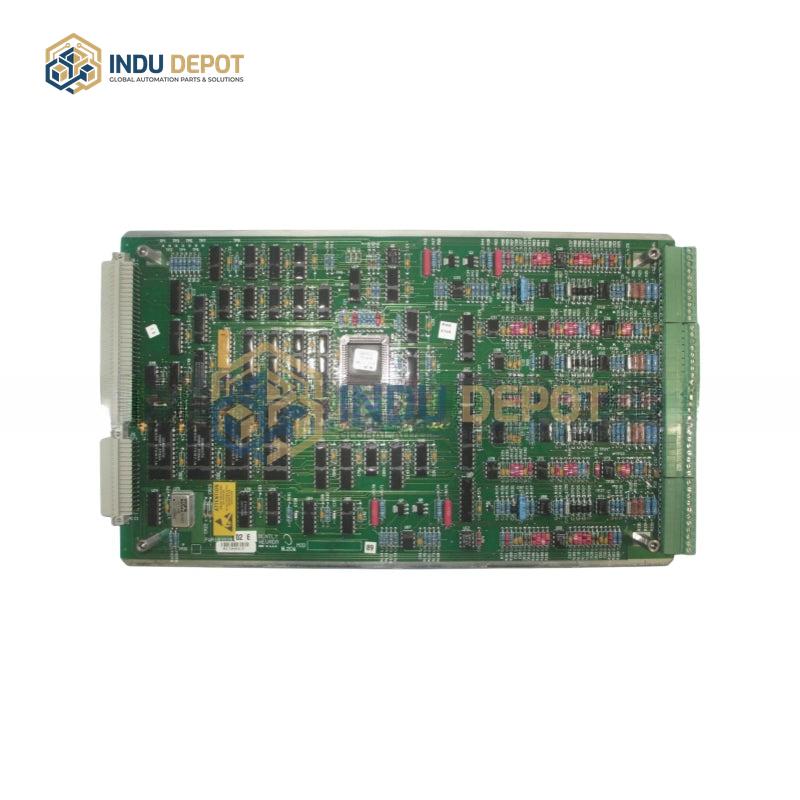

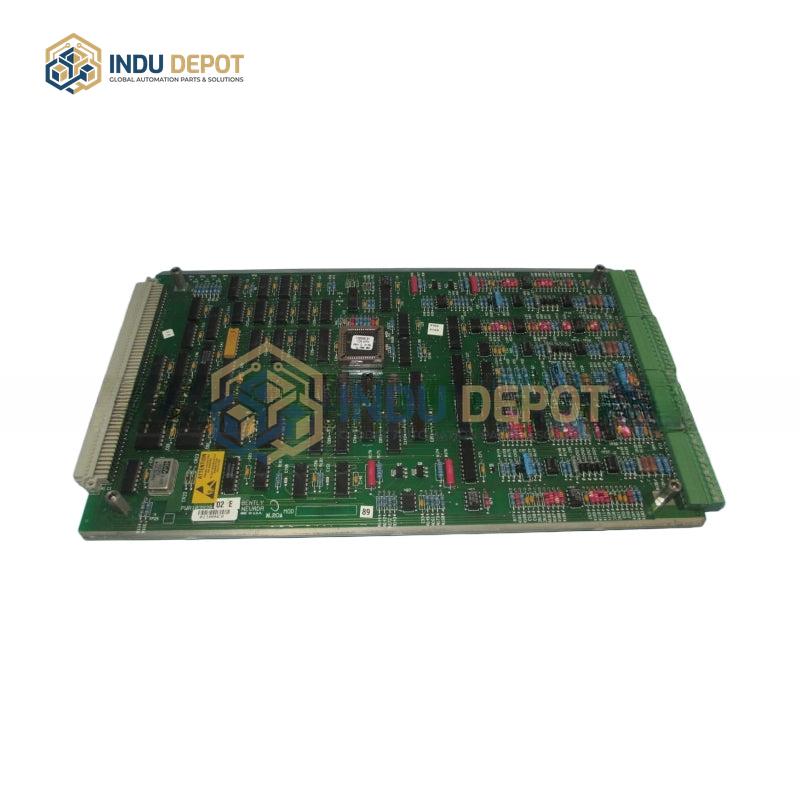

BENTLY NEVADA 103928-02 Keyphasor KPH Input Board

Description

BENTLY NEVADA 103928-02 Keyphasor KPH Input Board is a specialized component designed for integration with Bently Nevada machinery condition monitoring systems, aligned with the functionality of the related 3500/25 Enhanced Keyphasor Module. As a semi-height, dual-channel module, it serves to receive and convert Keyphasor signals, transmitting them to monitor modules within 3500 racks. It detects alignment between shaft-mounted keyphasor marks and sensors using magnetic pickups or proximity probes, converting analog input signals into digital Keyphasor data for precise rotational monitoring. The module supports flexible configuration: paired setups require installation in upper/lower half-slots or consecutive monitoring positions in two half-slots. Four such modules can provide four output channels, accepting four primary and four backup input channels (one per module), while three-module configurations with two coupled and one unpaired unit are also feasible, supporting single unpaired Keyphasor setups. This component enables measurement of shaft speed and vector characteristics such as 1X vibration amplitude and phase via 3500 monitor modules and external diagnostic tools, making it critical for rotational machinery health monitoring in industrial applications.
