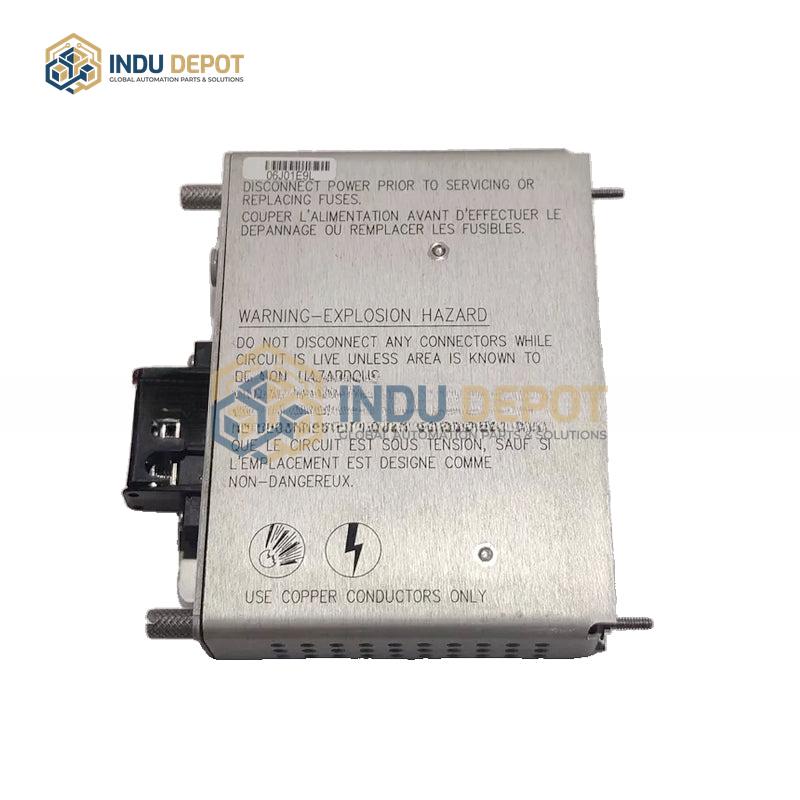

BENTLY NEVADA 133300-01 Low Voltage DC Power Input Module

Description

The BENTLY NEVADA 133300-01 Low Voltage DC Power Input Module is a specialized component designed for industrial applications, serving as a rear card for the 3500/15 power module series. Its core function is to deliver stable low-voltage DC power to Bently Nevada monitoring systems, ensuring consistent and reliable operation of connected industrial automation and process control equipment. Key technical specifications include an input voltage range of 88V DC to 140V DC, a regulated +24V DC output voltage, and a maximum output current of 5.2A. The module has dimensions of 120.7 mm x 50.8 mm x 251.5 mm (height x width x depth) and operates within a temperature range of -40 degrees Celsius to 85 degrees Celsius, with a storage temperature range of -40 degrees Celsius to 105 degrees Celsius, and features an IP67 protection rating for durability in harsh industrial environments. Built with industrial-grade components, it offers high reliability, low-noise operation to minimize system interference, and a long-life design to reduce replacement frequency. Its compact, modular structure simplifies installation and maintenance, and it supports multiple alarm outputs and communication interfaces for easy expansion. When installed in a 3500 rack, it can be used as a primary or backup power source, with hot-swapping capability that allows module removal or insertion without interrupting rack operation when a redundant unit is installed.
