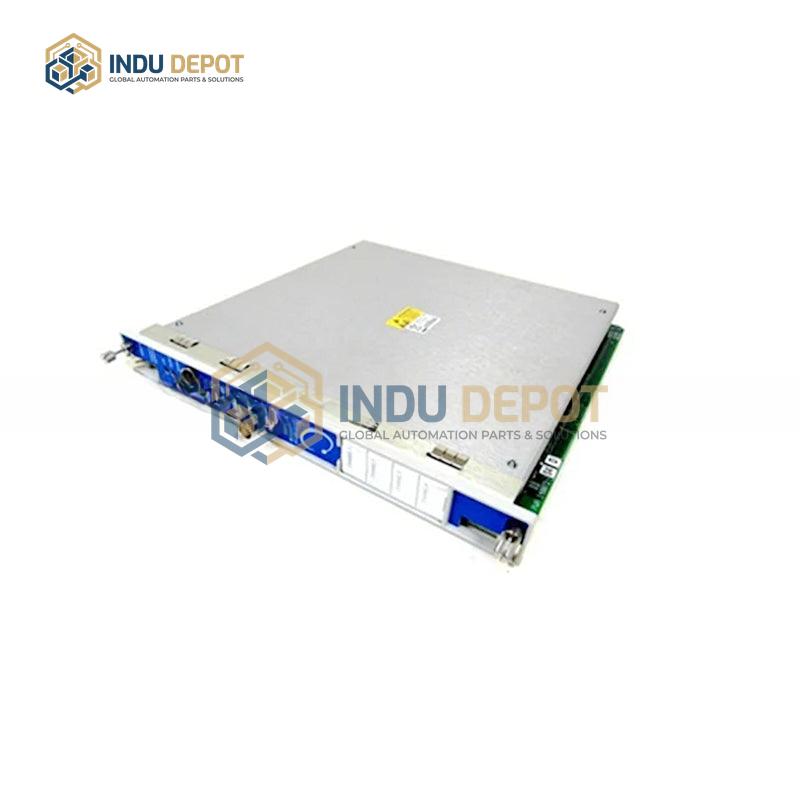

BENTLY NEVADA 140072-04 Position Monitor

Description

The BENTLY NEVADA 140072-04 Position Monitor is part of the 3500/45 series for mechanical condition monitoring. This four-channel device supports diverse input types, including proximity sensors, rotary position sensors (RPT), DC linear variable differential transformers (DC LVDT), AC linear variable differential transformers (AC LVDT), and rotary potentiometers, enabling flexible adaptation to various application needs. It is designed for rack mounting in 3500 series systems, with a 24 VDC power supply. Operating temperature ranges from -30 degrees Celsius to 65 degrees Celsius, and storage temperature spans -40 degrees Celsius to 85 degrees Celsius.

Equipped with advanced signal processing technology and high-precision sensor input interfaces, it delivers accurate and reliable measurements of parameters like axial position, differential expansion, and valve position. The monitor features multiple programmable alarm thresholds: it preprocesses input signals, compares them to user-defined alarm settings, and provides timely warnings of potential mechanical failures. It communicates via the Bently Nevada Data Highway (TDH), and includes front-panel LED indicators for OK, TX/RX, and bypass status. When integrated into existing 3500 systems, it requires specific minimum firmware and software versions, including 3500/20 RIM firmware version G, 3500 configuration software 2.41, and 3500 data acquisition software 2.20, among others.
