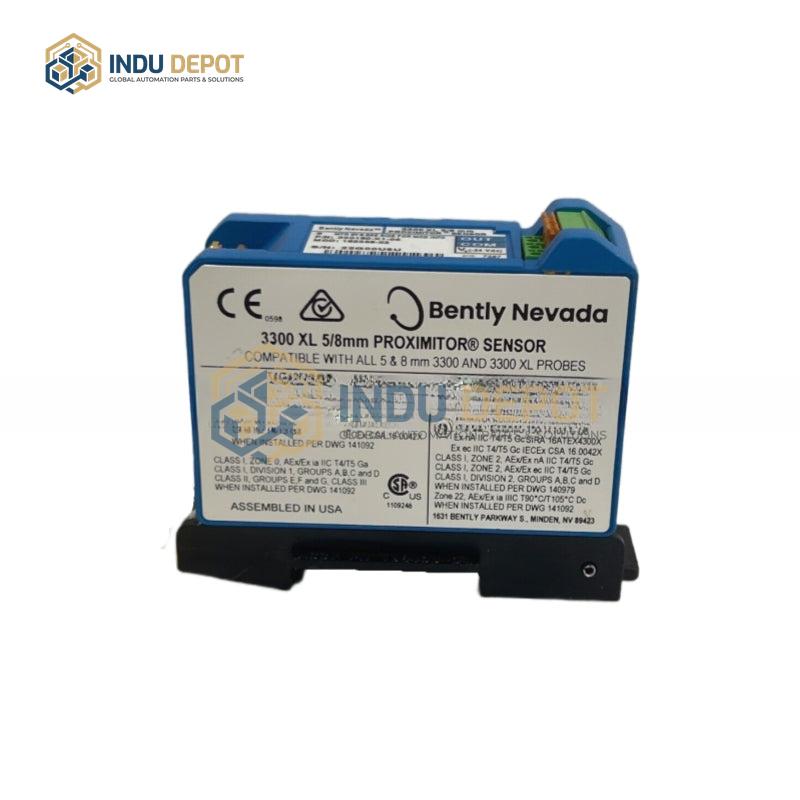

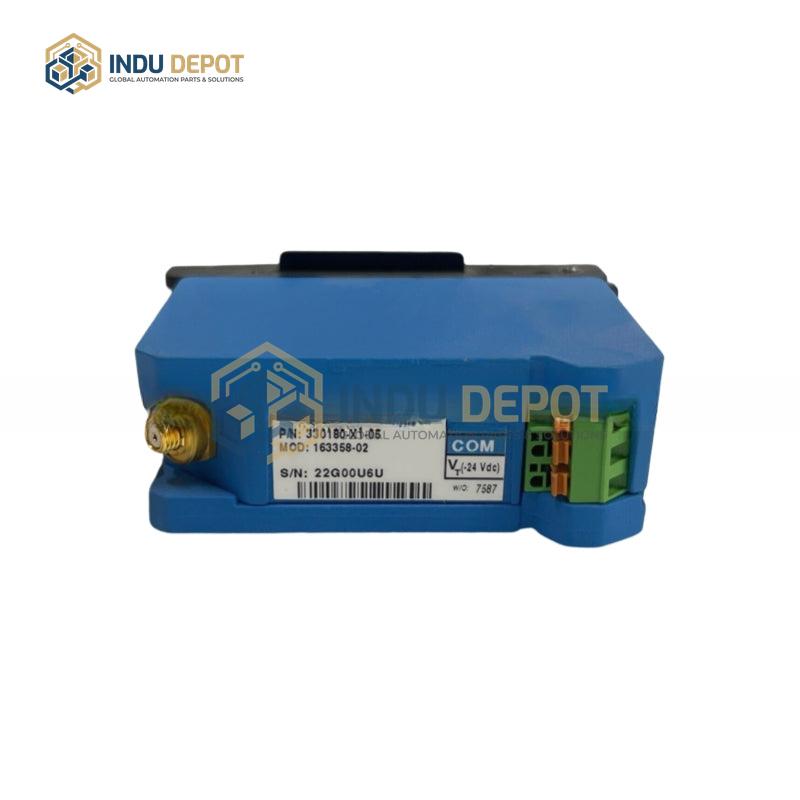

BENTLY NEVADA 330180-X1-05 Proximitor Sensor

Description

The BENTLY NEVADA 330180-X1-05 Proximitor Sensor is an integral component of the 3300 XL Transducer System, engineered with high immunity to radio frequency interference for reliable performance in industrial environments. This sensor offers flexible mounting options, including DIN mount and panel mount configurations, with no required mounting hardware; its physical packaging is optimized for high-density DIN-rail installations, while its panel mount footprint matches older Proximitor Sensor designs for seamless retrofitting. Key specifications include a 5.0 meter (16.4 feet) system length, CSA, ATEX, and IECEx certifications, and construction from A308 aluminum with gold-plated brass or gold-plated beryllium copper connectors. It accepts input from one non-contacting 3300-series 5mm, 3300 8mm, or 3300 XL 8mm proximity probe and extension cable, converting received signals into a voltage proportional to the distance between the probe tip and monitored surface. The total system length must match the electrical length of the paired probe and extension cable. Operating temperature ranges from -51 degrees Celsius to 100 degrees Celsius, with a storage temperature range of -51 degrees Celsius to 105 degrees Celsius. Tested per IEC standard 68-2-3 in 93% relative humidity for 56 days, it exhibits less than a 3% change in Average Scale Factor (ASF). The sensor weighs 0.246 kg.
