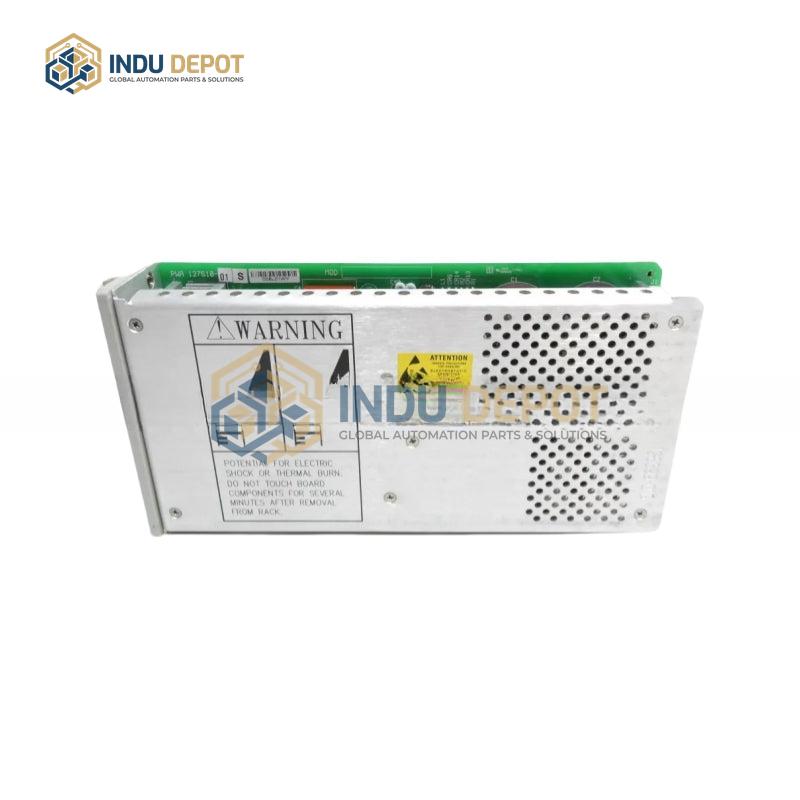

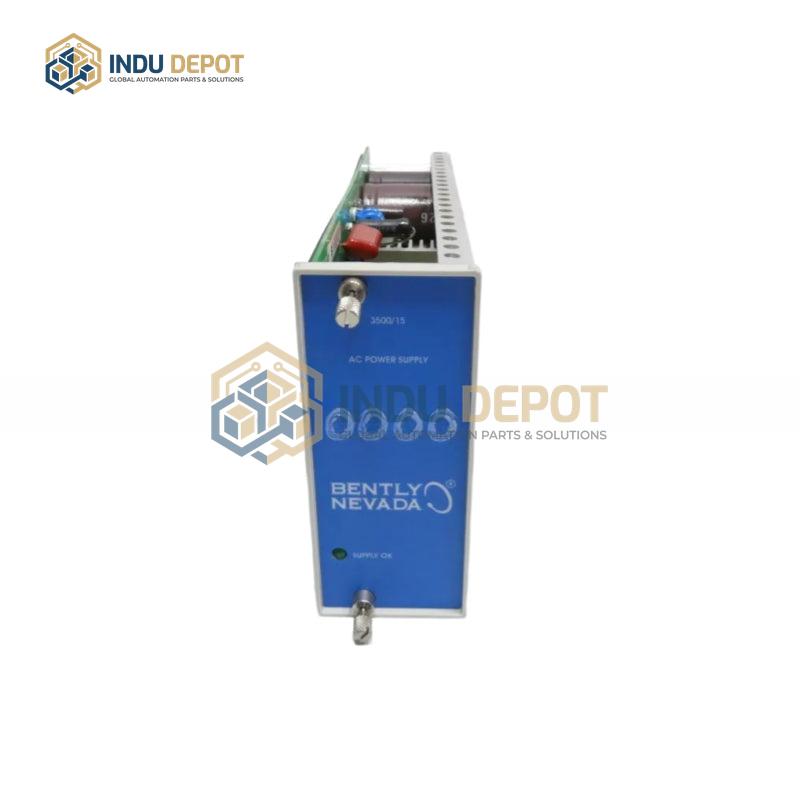

BENTLY NEVADA 3500/15 127610-01 Universal AC Power Supply Module

Description

The BENTLY NEVADA 3500/15 127610-01 Universal AC Power Supply Module is an industrial-grade power component designed for automation control and mechanical condition monitoring systems, particularly for the 3500 series platform. It features a half-height modular design, requiring installation in the left slot of the system rack. The rack supports configuration with one or two power modules (AC and/or DC combinations), with built-in redundancy: when two modules are installed, the lower unit acts as the primary power source and the upper as the backup, allowing hot-swapping of either module without interrupting rack operation.

Key electrical specifications include a wide input voltage range of 100-240V AC, 50/60Hz, 2A, with some versions supporting 85-264V AC or 88-140V DC inputs, and an input frequency range of 47-63Hz. It converts input power to a stable 24V DC output, with output current ratings ranging from 1.9A (full load) to 5.5A, and total output power of 190-250W. The module offers core protections including overload and short-circuit safeguards, ensuring stable, reliable power delivery for sensors and monitoring equipment in vibration monitoring systems. It operates in temperatures ranging from -30 degrees Celsius to 70 degrees Celsius, with a maximum non-condensing humidity of 95%.
