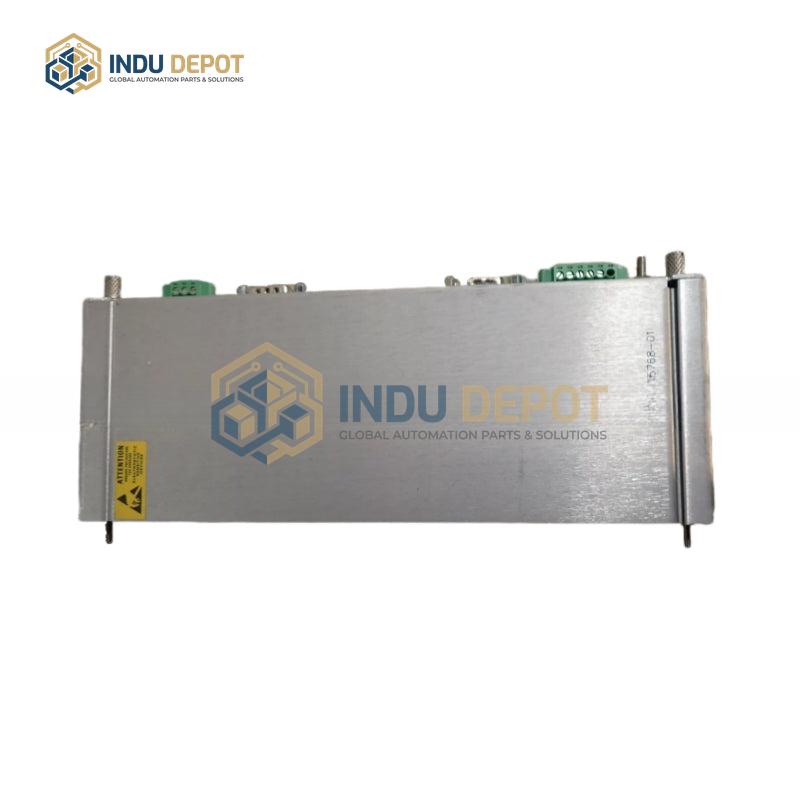

BENTLY NEVADA 3500/20 125768-01 Rack Interface I/O Module

Description

The BENTLY NEVADA 3500/20 125768-01 Rack Interface I/O Module is a Rack Interface Module (RIM) belonging to the Bently Nevada 3500/20 series monitoring system, designed to serve as a communication bridge between the 3500 system and external devices such as vibration monitoring systems and data acquisition systems, enabling data input/output and system-level communication. Key features include diverse interface support for RS232, RS422, and Ethernet (RJ45), robust real-time data exchange capabilities, flexible configurable communication parameters, and a modular design for simplified installation and maintenance. Technical specifications include a 24V DC operating voltage, 5A input current, 4.75 watts power consumption, and data rates up to 38.4k baud with auto-baud detection; internal modem communication supports up to 38.4k baud and 14.4k baud. The module is equipped with 8 analog channels and 4 digital channels, offers analog and relay output signals, a 1000Hz sampling rate, 0.1 microgram resolution, and 2.1 mg/vs/m sensitivity. Built for harsh industrial environments, it has an operating temperature range of -40 degrees Celsius to 70 degrees Celsius, storage temperature range of -40 degrees Celsius to 85 degrees Celsius, IP67 protection rating, and measures 138mm x 138mm x 138mm with a weight of approximately 0.5 kg.
