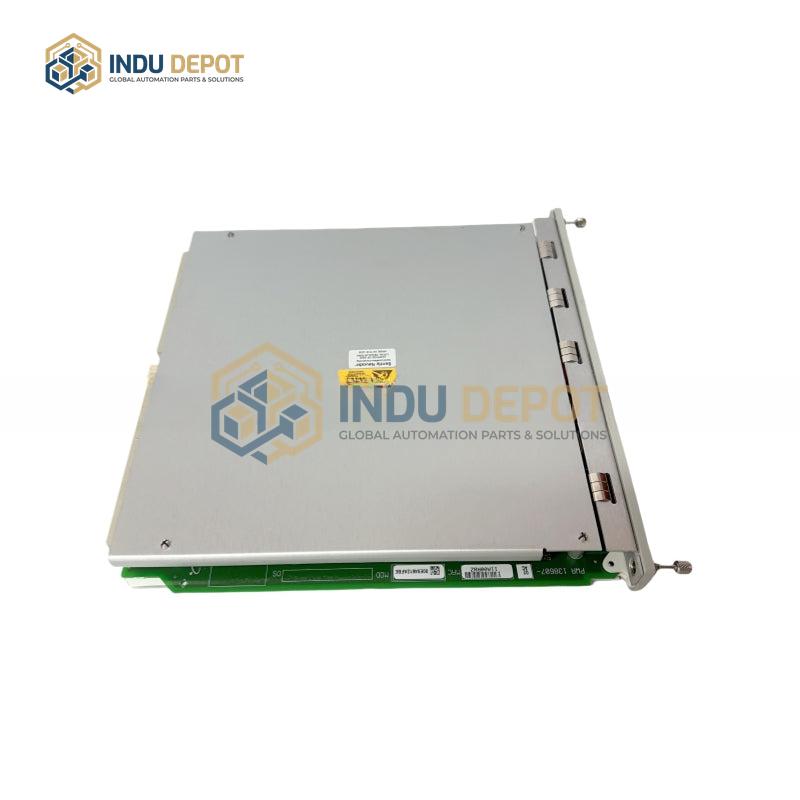

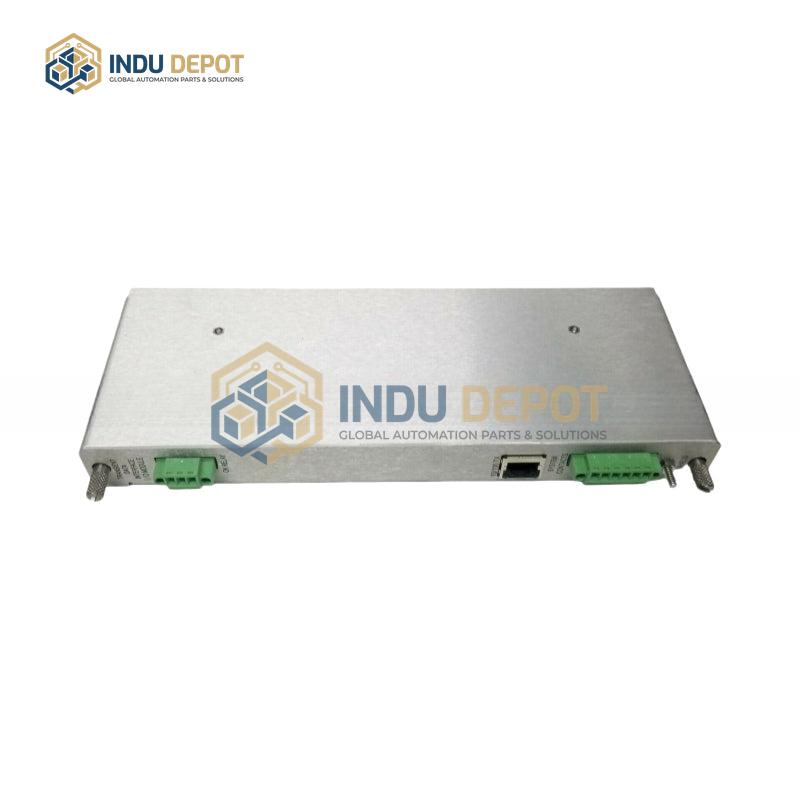

BENTLY NEVADA 3500/22M Transient Data Interface (TDI) Module

Description

The BENTLY NEVADA 3500/22M Transient Data Interface (TDI) Module is a compact card-style component designed for integration with the BENTLY NEVADA 3500 series monitoring system, with variant-specific core functions. As a Transient Data Interface (TDI), it connects the 3500 monitoring system to compatible data acquisition and analysis software, collecting both steady-state and transient dynamic (waveform) data for transmission to host software via Ethernet. It can also function as a Rack Interface Module (RIM), acting as a central hub to connect internal system modules and manage communication protocols, or as a communication processor to offload communication tasks from the main processor and boost system performance.

Key technical specifications for variants like the 288055-01 model include a power consumption of 10.5 watts, support for high-speed, real-time, accurate data transmission, and high-sampling-rate data capture. It offers multiple interface options: USB-B front panel, 10Base-T/100Base-TX adaptive Ethernet, and 100Base-FX fiber optic Ethernet. With a channel capacity of up to 48 channels and a frequency bandwidth supporting up to 500 kHz, it meets complex monitoring demands.

Features include modular design for easy expansion and maintenance, high reliability for stable data transmission, and compatibility with BENTLY NEVADA 3500 series systems and M-series sensors. It supports connection to System 1 mechanical management software, and is suitable for industrial applications such as power generation, enabling equipment fault diagnosis and predictive maintenance by capturing and analyzing transient vibration signals.
