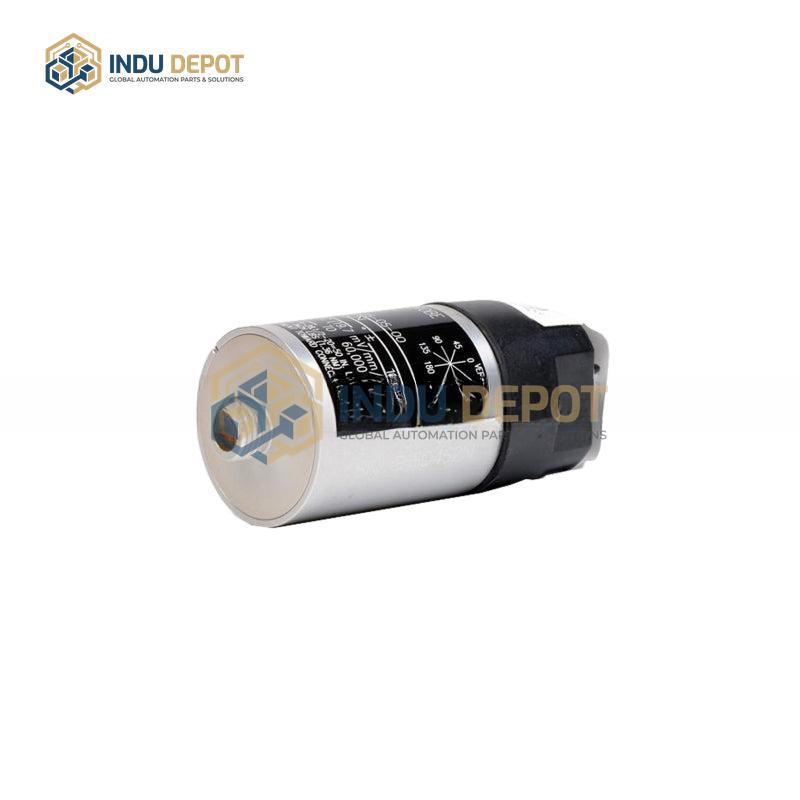

BENTLY NEVADA 9200-03-06-10-00 Seismoprobe Velocity Transducers

Description

The BENTLY NEVADA 9200-03-06-10-00 Seismoprobe Velocity Transducer is a two-wire device designed to measure absolute vibration (relative to free space) of bearing housings, casings, or structural components in industrial environments. Built with moving coil technology, it delivers a precise voltage output directly proportional to vibration velocity, ensuring accurate vibration data capture.

Key performance specifications include a temperature range of -29 degrees Celsius to 121 degrees Celsius (-20 F to 250 F), and a sensitivity of 20 mV/mm/s (500 mV/in/s) with ±5% accuracy when properly terminated and oriented at the calibration angle; transverse sensitivity is limited to 10% or less of axial sensitivity. Its frequency response operates between 4.5, 10, or 15 Hz up to 1 kHz (60,000 cpm), with typical ±0, -3dB tolerance.

The transducer offers robust mechanical shock resistance, withstanding up to 50 g peak shocks along the non-sensitive transverse axis, and is less susceptible to impact or impulsive excitations for reliable performance in challenging conditions. It requires no external power supply, making it ideal for portable measurements, and is available with CSA and ATEX/IECEx certification options for use in hazardous areas. It supports both continuous monitoring and periodic diagnostic measurements, and can be paired with compatible cables (with optional stainless steel armoring) and velocity-displacement converters for expanded functionality.
