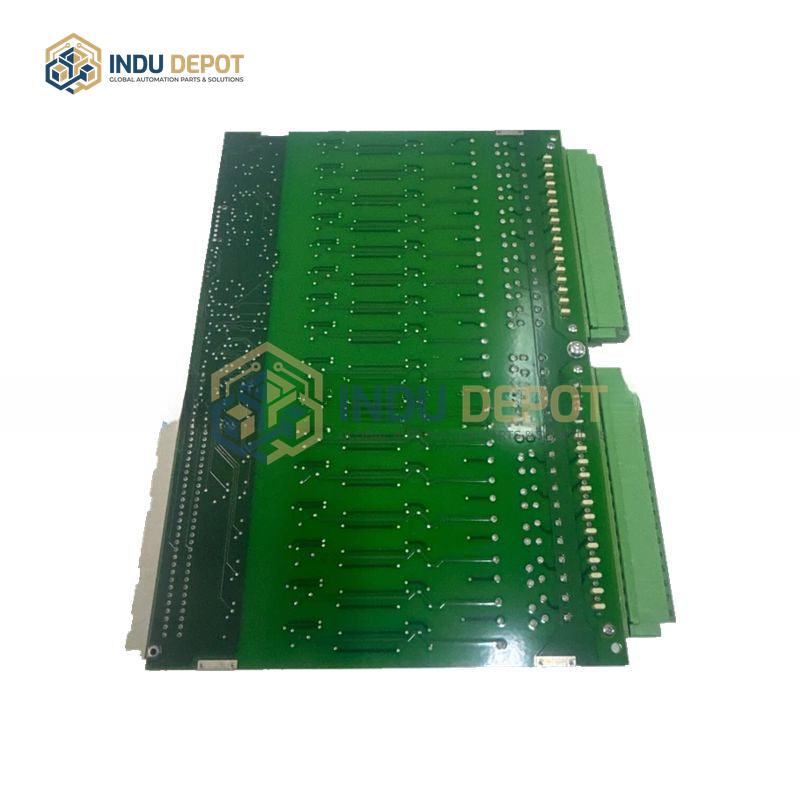

Binary Input Module ABB 1MRK00508-BDr06 Industrial Automation
Description
ABB 1MRK00508-BDr06 Binary Input Module is an industrial control board/control module designed for relay protection and control devices, serving as a core logic processing unit for automated systems.
| Specification | Value |
|---|---|
| Product Type | Control Board/Control Module |
| Supported Communication Protocol | IEC 61850 |
| Operating Temperature Range | -40 to 70 degrees Celsius (typical industrial grade) |
| Isolation Voltage | Up to 2500V DC (channel to system isolation) |
| Installation Method | DIN Rail Mount |
Key Features:
- Signal processing and logic control, handling sampled signals like voltage and current to execute tasks such as tripping, locking, and alarming
- Control command execution, receiving instructions from upper-level systems or protection programs to send commands to actuators like circuit breakers
- Communication and data exchange, interacting with main control modules, communication interfaces, or remote terminal units
- System status monitoring and feedback, collecting real-time equipment operating data and sending fault signals to the main system
- Industrial-grade circuit board with strong anti-interference performance, suitable for high-voltage environments
- Modular structure for easy assembly, maintenance, and replacement
- High stability for long-term continuous operation
Applications:
- Digital substation automation systems (SAS)
- Internal module for protection and control devices (IED) such as ABB REL670, RET670, REF615 series
- High-voltage transmission and distribution system protection applications (110kV, 220kV)
- Process control and switch command management, including trip logic judgment and fault handling
Related Models:
- ABB 1MRK000508-BDr03
- ABB 1MRK000508-CDr09
- ABB 1MRK000508-CD
- ABB 1MRK000508BD
