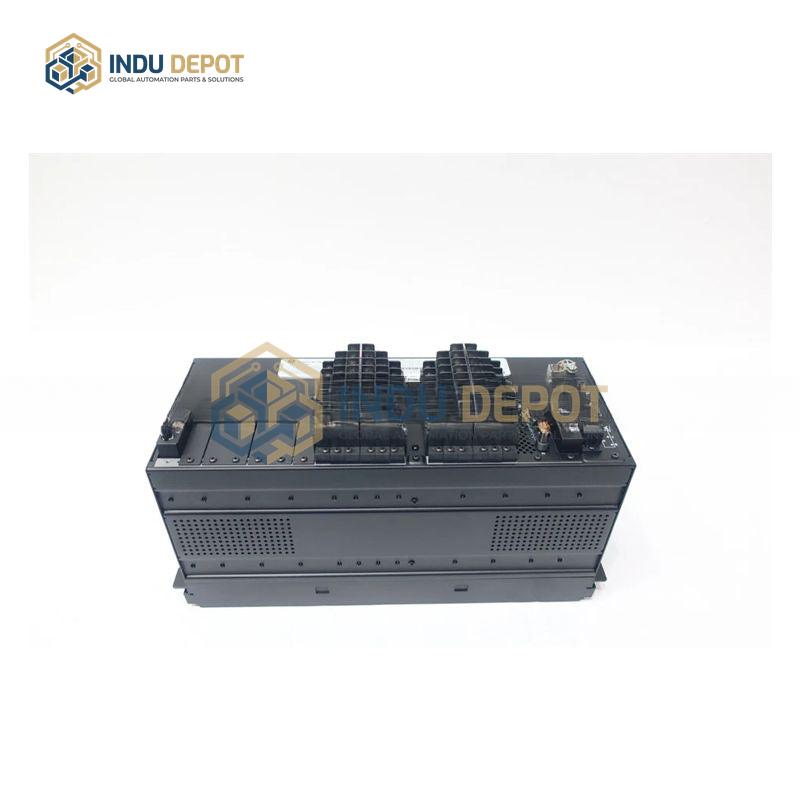

C30A00HCHF6DHXXMXXPXXUXXWXX Controller Substation Automation System GE
Description
C30A00HCHF6DHXXMXXPXXUXXWXX Controller is a substation automation system controller from GE. No direct technical data is available for this model, so details are provided for the closely related GE DS200SDCCG1AGD, a digital substation controller designed for power grids up to 200 kV.
| Specification | Value |
|---|---|
| Rated Voltage | 200 kV, compatible with 110 kV, 132 kV, 150 kV, 220 kV |
| Rated Frequency | 50 Hz / 60 Hz |
| Communication Interfaces | Ethernet (10/100 Mbps, optional 1 Gbps), fiber (optional 1000BASE-LX), serial (RS-232/RS-485), USB |
| Supported Protocols | IEC 61850-9-2 (GSE), IEC 61850-7-4 (MMS), DNP3, Modbus, IEC 60870-5-101/104 |
| Processor | High-performance embedded ARM/PowerPC dual-core processor |
| Memory/Storage | 4 GB DDR4 RAM, 128 GB SSD (expandable) |
| Operating Temperature | -40 degrees Celsius to +85 degrees Celsius (industrial grade) |
| Power Supply | 100 VDC – 240 VDC (wide range DC input) |
| Form Factor/Weight | 1U/2U rack-mount, approximately 4 kg (varies by configuration) |
Key Features:
- Fully digital design replaces traditional analog/electromagnetic relays for digital measurement, protection, and control
- Highly integrated with protection, monitoring, communication, and logic control functions, supporting quick configuration of IEC 61850 logical nodes
- Modular redundancy with hot-standby and dual-controller options, minimizing single-point failure risks
- Millisecond-level response time based on IEC 61850-9-2S (Sampled Values) and GOOSE protocols
- Secure design compliant with IEC 62351, supporting TLS/SSL encryption, hardware security modules, and access control
- Easy maintenance with remote diagnostics, OTA firmware updates, and graphical Web/SCADA configuration interfaces
- Strong compatibility with traditional relay logic and IEDs from GE, ABB, Siemens, and other brands
Applications:
- Substation automation for transmission and distribution grids up to 200 kV, enabling centralized control, monitoring, protection, and automation
- Smart grid and distributed energy integration scenarios
- Industrial automation processes requiring high-reliability control and monitoring
