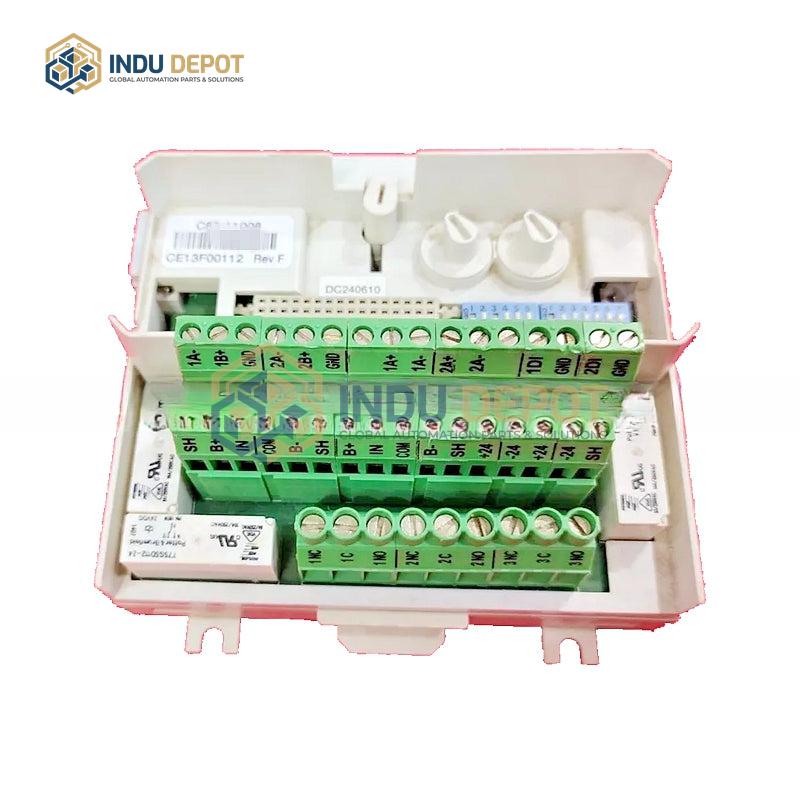

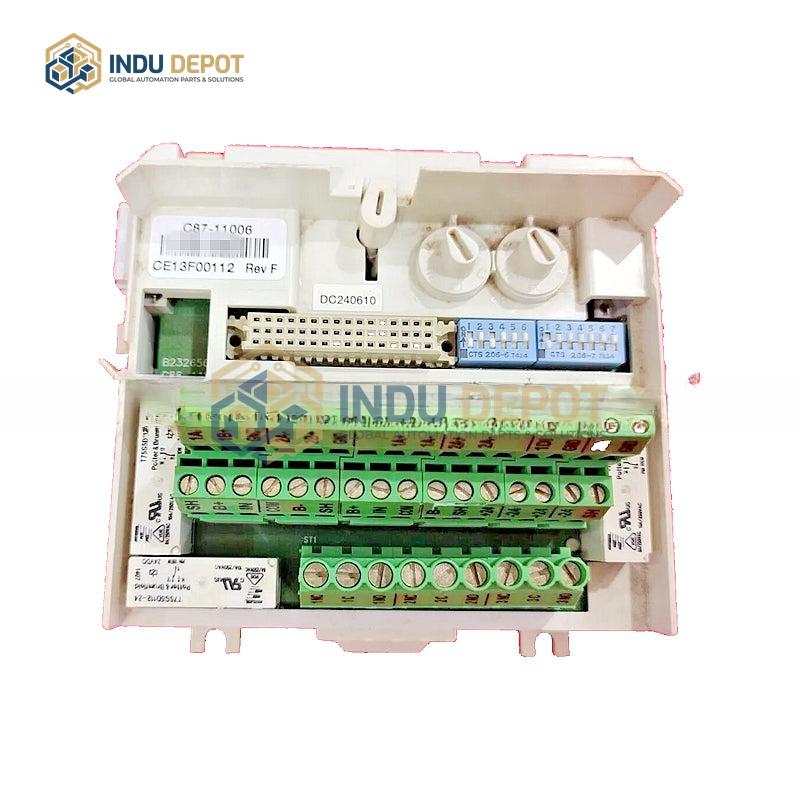

C87-11006 ABB FAU810 Base
Description
ABB FAU810 Flame Analysis Unit Processor (C87-11006 Base) is a core industrial safety and combustion monitoring device that combines multi-gas detection and flame analysis capabilities, serving as a critical component for industrial safety systems and combustion control.
| Specification | Value |
|---|---|
| Detectable Gas Types | Flammable gases (methane, hydrogen, etc., 0-100% LEL), toxic gases (carbon monoxide, hydrogen sulfide, etc., 0-1000ppm), oxygen (0-30% volume concentration) |
| Sensor Types | Electrochemical (toxic gases), catalytic combustion (flammable gases), optional infrared (poison-resistant) |
| Detection Accuracy | Flammable gases ±3% LEL, toxic gases ±5% F.S., oxygen ±1% volume concentration |
| Response Time | Flammable gases ≤3 seconds, toxic gases ≤30 seconds, oxygen ≤15 seconds |
| Communication Protocols | 4-20mA analog output, Modbus RTU/TCP, optional HART, redundant Profibus DP-V1 |
| Operating Temperature | -40 to 70 degrees Celsius |
| Protection Rating | IP66 |
| Explosion Proof Rating | ATEX Ⅱ 2GD Ex d ⅡCT6 |
| Power Supply | 18-30 VDC, redundant 24 VDC supported |
| Power Consumption | 3.6W (fanless design) |
Key Features:
- Dual independent signal processing channels for simultaneous flame detector signal analysis
- Supports two-level configurable alarm thresholds with remote configuration capability
- Full-spectrum flame monitoring compatible with infrared, ultraviolet, and visible light probes
- Adaptive parameter switching for different fuel types (fuel oil, pulverized coal, natural gas)
- Continuous self-diagnosis with fault response time ≤0.1 seconds
- Redundant communication and power supply design for high reliability
Applications:
- Petrochemical industry: Crackers, heating furnaces, and storage facilities for gas leak and flame monitoring
- Power plants: Pulverized coal boilers and circulating fluidized bed boilers for flame stability monitoring
- Metallurgy industry: Blast furnace stoves and converter combustion systems
- Waste incineration plants: Multi-fuel combustion system monitoring
- Cement industry: Rotary kiln burner flame shape and intensity monitoring
- Pharmaceutical industry: High-risk production and storage areas
