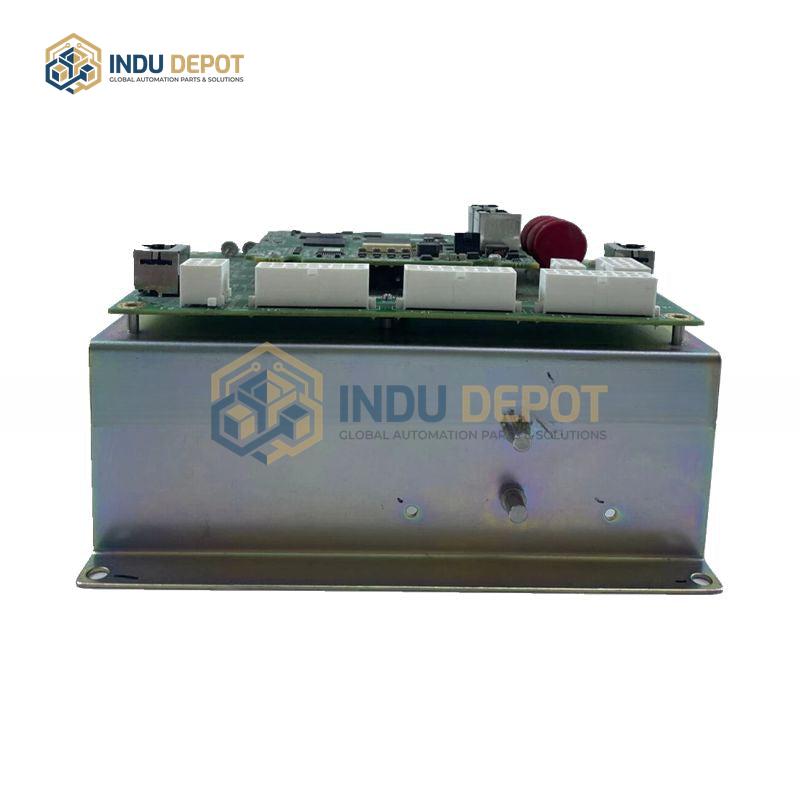

Circuit Board Card IS200AEPCH1CCB IS215AEPCH1FA Industrial Control GE
Description
IS200AEPCH1CCB is an RST analog I/O board from General Electric, part of the Mark V series, designed for gas turbine control systems.
| Specification | Value |
|---|---|
| Part Number | IS200AEPCH1CCB |
| Manufacturer | General Electric |
| Product Type | Analog I/O Board |
| Series | Mark V |
| Country of Origin | United States |
Key Features:
- Scales and conditions a wide range of analog signals including LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals
- Uses hardware jumpers for configuration: J1/J2 select mA output circuits, J5/J6 set mA output range (20 mA or 200 mA), J7 enables card testing via RS232 port, J8 activates oscillator
- Communicates with other system boards via dedicated connectors: 3PL connector for signal transfer to STCA board, JE connector for sending/receiving generator and line signals with TCQC board
- Processes specific 4-20 mA input signals such as compressor stall detection and fuel flow pressure signals
Applications:
- Gas turbine control systems
- Industrial automation and process control systems
Related Models:
- IS215AEPCH1FA
- IS200AEPCH1ABC
- IS215WECAH1A
